Adapter Sleeves is used for fixing conical self-aligning bearing (self-aligning ball bearing, self-aligning roller bearing) on the
shaft without shoulder with simple structure, reliable operation and convenient change. It is widely used in the belt conveying
equipment in the fields of textile, light industry, paper-making industry, metallurgical industry.

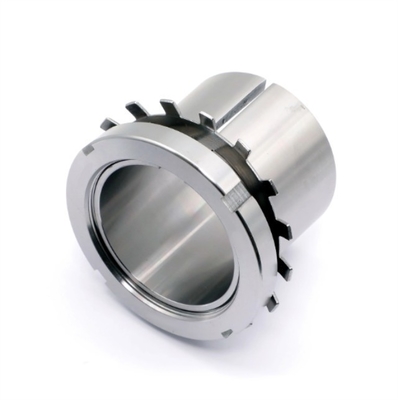

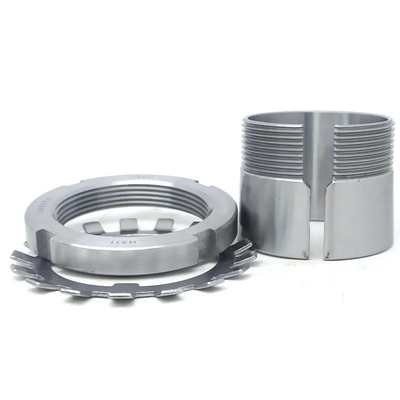

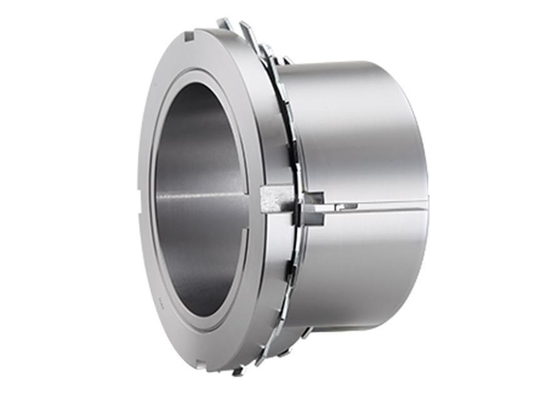

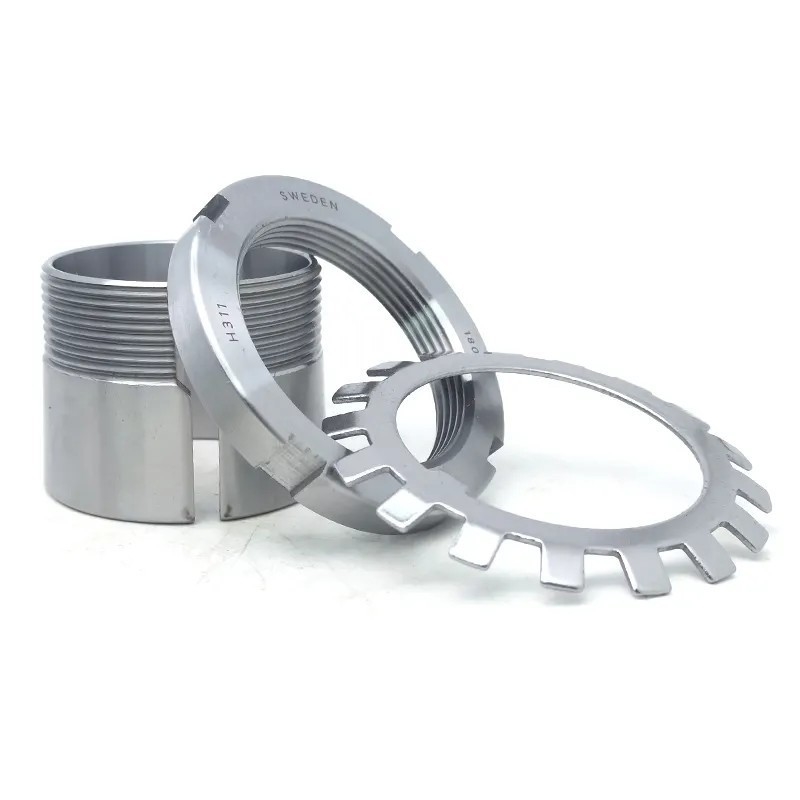

The Adapter Sleeves is composed of tapered adepter bush, locknut, lock washer (or retainer). The Adapter Sleeves with locknut and
lock washer is only replaced with whole set. The parts not from same resource are not changeable.
 |
High precision Adapter Sleeve Bearings H3030 H3032 H3034 H3036 H3036 for Special usage
Product Details:
| Place of Origin: | Germany |
| Brand Name: | F.A.G. |
| Model Number: | H3036 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 pieces |
|---|---|
| Price: | $78.99/pieces 2-99 pieces |
| Delivery Time: | If stock, in 7days or based on your order quantity |
|
Detail Information |
|||
| Applicable Industries: | Hotels, Machinery Repair Shops, Garment Shops, Food & Beverage Factory, Manufacturing Plant, Building Material Shops, Restaurant, Farms, Retail, Food Shop, Home Use, Printing Shops, Construction Works , Other, Advertising Company, Food & Beverage Shops, En | Type: | Special |
|---|---|---|---|
| Precision Rating: | P5 | Seals Type: | Open/sealed |
| Application: | Agricultural Machinery | Packing: | Accept Customer's Special Requirements |
| Feature: | Stable Performance | Material: | Chrome Steel GCr15 |
| Delivery Time: | 2-7 Days | Package: | Original Package |
| Cage: | Nylon | Quality: | High-Quality |
| STOCK: | Large | CERTIFICATE: | ISO9001:2008 |
Product Description
Product Description

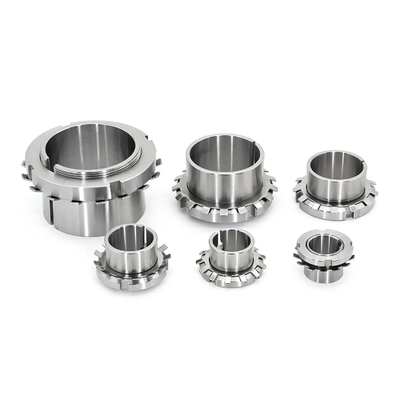

Adapter Sleeves
Specification
model | dimensions(mm) | appropriate bearing(s) | weight(kg) | ||||||||
d | d1 | B1 | d2 | B2 | self-aligning ball bearing | ||||||
H205 | 25 | 20 | 26 | 38 | 8 | 1205K | 0.064 | ||||
H206 | 30 | 25 | 27 | 45 | 8 | 1206K | 0.086 | ||||
H207 | 35 | 30 | 29 | 52 | 9 | 1207K | 0.12 | ||||
H208 | 40 | 35 | 31 | 58 | 10 | 1208K | 0.16 | ||||
H209 | 45 | 40 | 33 | 65 | 11 | 1209K | 0.21 | ||||
H210 | 50 | 45 | 35 | 70 | 12 | 1210K | 0.24 | ||||
H211 | 55 | 50 | 37 | 75 | 12 | 1211K | 0.28 | ||||
H212 | 60 | 55 | 38 | 80 | 13 | 1212K | 0.31 | ||||
H213 | 65 | 60 | 40 | 85 | 14 | 1213K | 0.36 | ||||
H214 | 70 | 60 | 41 | 92 | 14 | 1214K | 0.55 | ||||
H215 | 75 | 65 | 43 | 98 | 15 | 1215K | 0.66 | ||||
H216 | 80 | 70 | 46 | 105 | 17 | 1216K | 0.81 | ||||
H217 | 85 | 75 | 50 | 110 | 18 | 1217K | 0.94 | ||||
H218 | 90 | 80 | 52 | 120 | 18 | 1218K | 1.1 | ||||
H219 | 95 | 85 | 55 | 125 | 19 | 1219K | 1.25 | ||||
H220 | 100 | 90 | 58 | 130 | 20 | 1220K | 1.4 | ||||
H221 | 105 | 95 | 60 | 140 | 20 | 1221K | 1.6 | ||||
H222 | 110 | 100 | 63 | 145 | 21 | 1222K | 1.8 | ||||
Model | Dimension(mm) | Supporting bearing model | ||||||||||
Model | d | d1 | B1 | d2 | Self-aligning ball bearings | Spherical roller bearings | Weight | |||||
H2304 | 20 | 17 | 31 | 32 | 111604 | 0.049 | ||||||
H2305 | 25 | 20 | 35 | 38 | 111605 | 0.087 | ||||||
H2306 | 30 | 25 | 38 | 45 | 111606 | 0.126 | ||||||
H2307 | 35 | 30 | 43 | 52 | 111607 | 0.165 | ||||||
H2308 | 40 | 35 | 46 | 58 | 111608 | 153608 | 0.224 | |||||
H2309 | 45 | 40 | 50 | 65 | 111609 | 503609 | 0.28 | |||||
H2310 | 50 | 45 | 55 | 70 | 111610 | 153610 | 0.362 | |||||
H2311 | 55 | 50 | 59 | 75 | 111611 | 153611 | 0.42 | |||||
H2312 | 60 | 55 | 62 | 80 | 111612 | 153612 | 0.481 | |||||
H2313 | 65 | 60 | 65 | 85 | 111613 | 153613 | 0.557 | |||||
H2314 | 70 | 60 | 68 | 92 | 111614 | 153614 | 0.897 | |||||
H2315 | 75 | 65 | 73 | 98 | 111615 | 153615 | 1.05 | |||||
H2316 | 80 | 70 | 78 | 105 | 111616 | 153616 | 1.28 | |||||
H2317 | 85 | 75 | 82 | 110 | 111617 | 153617 | 1.45 | |||||
H2318 | 90 | 80 | 86 | 120 | 111618 | 153618 | 1.69 | |||||
H2319 | 95 | 85 | 90 | 155 | 111619 | 153619 | 1.92 | |||||
H2320 | 100 | 90 | 97 | 130 | 111620 | 153620 | 2.15 | |||||
H2322 | 110 | 100 | 105 | 145 | 111622 | 153622 | 2.74 | |||||
H2324 | 120 | 110 | 112 | 155 | 153624 | 1536224 | 3.19 | |||||
H2326 | 130 | 115 | 121 | 165 | 153626 | 1536226 | 4.6 | |||||
H2328 | 140 | 125 | 131 | 180 | 153628 | 1536228 | 5.55 | |||||
H2330 | 150 | 135 | 139 | 195 | 153630 | 1536230 | 6.63 | |||||
H2332 | 160 | 140 | 147 | 210 | 153632 | 1536232 | 9.14 | |||||
H2334 | 170 | 150 | 154 | 220 | 153634 | 1536234 | 10.2 | |||||
H2336 | 180 | 160 | 161 | 230 | 153636 | 1536236 | 11.3 | |||||
H2338 | 190 | 170 | 169 | 240 | 153638 | 1536238 | 12.6 | |||||
H2340 | 200 | 180 | 176 | 250 | 153640 | 1536240 | 13.9 | |||||
H2344 | 220 | 200 | 186 | 280 | 153644 | 1536244 | 16.7 | |||||
H2348 | 240 | 220 | 199 | 300 | 153648 | 1536248 | 19.7 | |||||
H2352 | 260 | 240 | 211 | 330 | 153652 | 1536252 | 24.2 | |||||
H2356 | 280 | 260 | 224 | 350 | 153656 | 1536256 | 27.2 | |||||
