Adapter Sleeves is used for fixing conical self-aligning bearing (self-aligning ball bearing, self-aligning roller bearing) on the
shaft without shoulder with simple structure, reliable operation and convenient change. It is widely used in the belt conveying
equipment in the fields of textile, light industry, paper-making industry, metallurgical industry.
The Adapter Sleeves is composed of tapered adepter bush, locknut, lock washer (or retainer). The Adapter Sleeves with locknut and
lock washer is only replaced with whole set. The parts not from same resource are not changeable.
 |

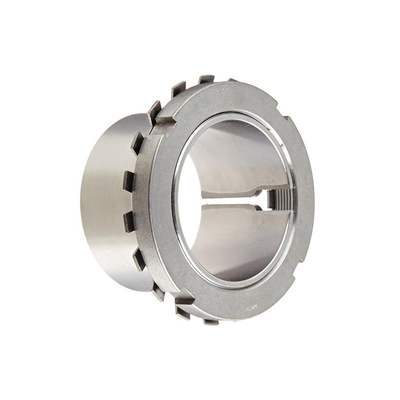

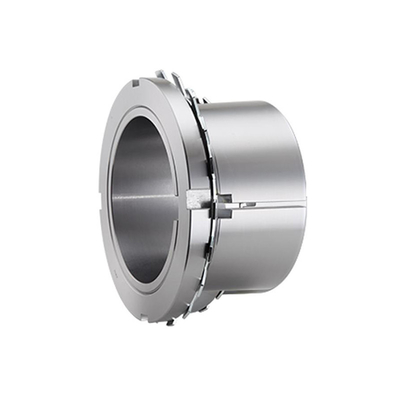

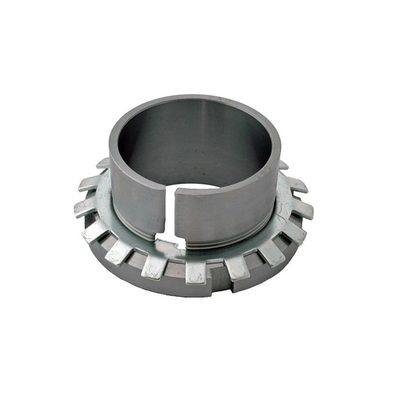

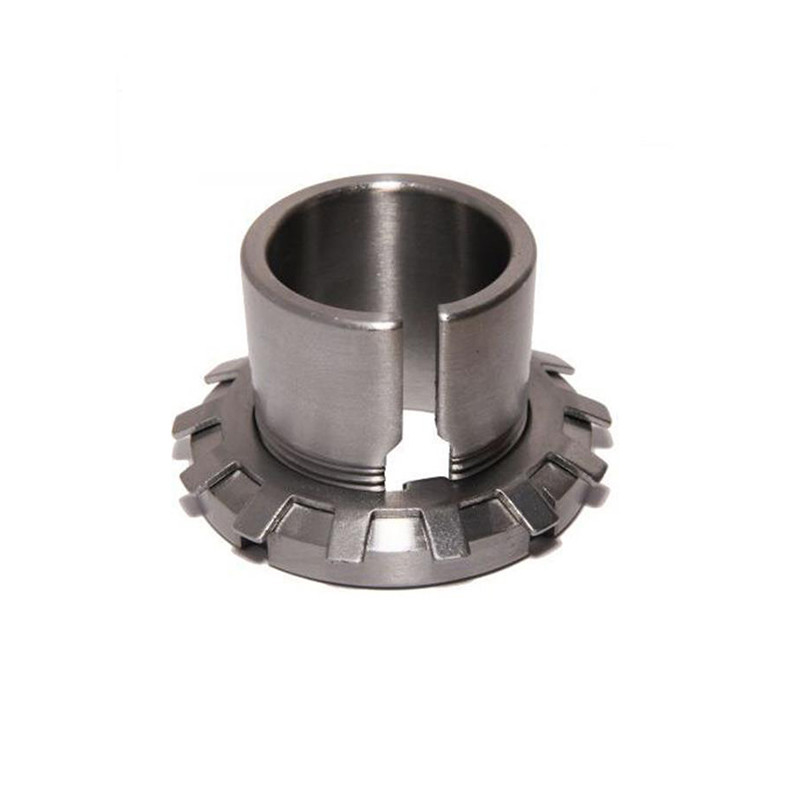

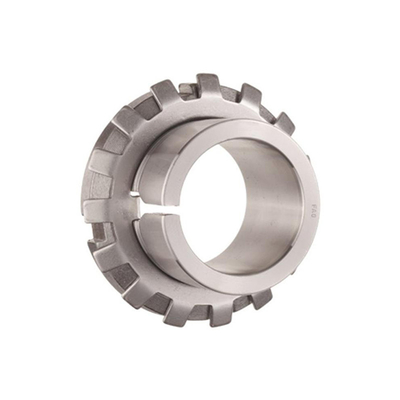

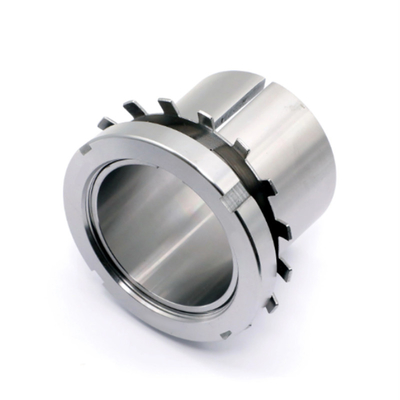

Bearing Assembly 90*100*130mm Stainless Steel Adapter Sleeve H320 with Lock Nut and Washer
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | HANSEL |
| Model Number: | H320 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 pieces |
|---|---|
| Price: | $8.79/pieces 10-99 pieces |
| Delivery Time: | If stock, in 7days or based on your order quantity |
|
Detail Information |
|||
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Retail, Construction Works , Energy & Mining, Other | Product Name: | Bearing Accessories H320 Adapt Sleeve |
|---|---|---|---|
| Material: | Chrome Steel/GCr15 Stainless Steel | Application: | Bearing Assembly |
| Keywords: | Bearings Sleeve | Certificate: | ISO9001:2008 |
| Feature: | Long Life Durable | Lubricate: | Dry |
| COLOR: | Customers Required | Stock: | Great Supplying Ability |
| Structuce: | Roller | ||
Product Description
Product Description
Adapter Sleeves
Specification
model | dimensions(mm) | appropriate bearing(s) | weight(kg) | ||||||||
d | d1 | B1 | d2 | B2 | self-aligning ball bearing | ||||||
H205 | 25 | 20 | 26 | 38 | 8 | 1205K | 0.064 | ||||
H206 | 30 | 25 | 27 | 45 | 8 | 1206K | 0.086 | ||||
H207 | 35 | 30 | 29 | 52 | 9 | 1207K | 0.12 | ||||
H208 | 40 | 35 | 31 | 58 | 10 | 1208K | 0.16 | ||||
H209 | 45 | 40 | 33 | 65 | 11 | 1209K | 0.21 | ||||
H210 | 50 | 45 | 35 | 70 | 12 | 1210K | 0.24 | ||||
H211 | 55 | 50 | 37 | 75 | 12 | 1211K | 0.28 | ||||
H212 | 60 | 55 | 38 | 80 | 13 | 1212K | 0.31 | ||||
H213 | 65 | 60 | 40 | 85 | 14 | 1213K | 0.36 | ||||
H214 | 70 | 60 | 41 | 92 | 14 | 1214K | 0.55 | ||||
H215 | 75 | 65 | 43 | 98 | 15 | 1215K | 0.66 | ||||
H216 | 80 | 70 | 46 | 105 | 17 | 1216K | 0.81 | ||||
H217 | 85 | 75 | 50 | 110 | 18 | 1217K | 0.94 | ||||
H218 | 90 | 80 | 52 | 120 | 18 | 1218K | 1.1 | ||||
H219 | 95 | 85 | 55 | 125 | 19 | 1219K | 1.25 | ||||
H220 | 100 | 90 | 58 | 130 | 20 | 1220K | 1.4 | ||||
H221 | 105 | 95 | 60 | 140 | 20 | 1221K | 1.6 | ||||
H222 | 110 | 100 | 63 | 145 | 21 | 1222K | 1.8 | ||||
Model | Dimension(mm) | Supporting bearing model | ||||||||||
Model | d | d1 | B1 | d2 | Self-aligning ball bearings | Spherical roller bearings | Weight | |||||
H2304 | 20 | 17 | 31 | 32 | 111604 | 0.049 | ||||||
H2305 | 25 | 20 | 35 | 38 | 111605 | 0.087 | ||||||
H2306 | 30 | 25 | 38 | 45 | 111606 | 0.126 | ||||||
H2307 | 35 | 30 | 43 | 52 | 111607 | 0.165 | ||||||
H2308 | 40 | 35 | 46 | 58 | 111608 | 153608 | 0.224 | |||||
H2309 | 45 | 40 | 50 | 65 | 111609 | 503609 | 0.28 | |||||
H2310 | 50 | 45 | 55 | 70 | 111610 | 153610 | 0.362 | |||||
H2311 | 55 | 50 | 59 | 75 | 111611 | 153611 | 0.42 | |||||
H2312 | 60 | 55 | 62 | 80 | 111612 | 153612 | 0.481 | |||||
H2313 | 65 | 60 | 65 | 85 | 111613 | 153613 | 0.557 | |||||
H2314 | 70 | 60 | 68 | 92 | 111614 | 153614 | 0.897 | |||||
H2315 | 75 | 65 | 73 | 98 | 111615 | 153615 | 1.05 | |||||
H2316 | 80 | 70 | 78 | 105 | 111616 | 153616 | 1.28 | |||||
H2317 | 85 | 75 | 82 | 110 | 111617 | 153617 | 1.45 | |||||
H2318 | 90 | 80 | 86 | 120 | 111618 | 153618 | 1.69 | |||||
H2319 | 95 | 85 | 90 | 155 | 111619 | 153619 | 1.92 | |||||
H2320 | 100 | 90 | 97 | 130 | 111620 | 153620 | 2.15 | |||||
H2322 | 110 | 100 | 105 | 145 | 111622 | 153622 | 2.74 | |||||
H2324 | 120 | 110 | 112 | 155 | 153624 | 1536224 | 3.19 | |||||
H2326 | 130 | 115 | 121 | 165 | 153626 | 1536226 | 4.6 | |||||
H2328 | 140 | 125 | 131 | 180 | 153628 | 1536228 | 5.55 | |||||
H2330 | 150 | 135 | 139 | 195 | 153630 | 1536230 | 6.63 | |||||
H2332 | 160 | 140 | 147 | 210 | 153632 | 1536232 | 9.14 | |||||
H2334 | 170 | 150 | 154 | 220 | 153634 | 1536234 | 10.2 | |||||
H2336 | 180 | 160 | 161 | 230 | 153636 | 1536236 | 11.3 | |||||
H2338 | 190 | 170 | 169 | 240 | 153638 | 1536238 | 12.6 | |||||
H2340 | 200 | 180 | 176 | 250 | 153640 | 1536240 | 13.9 | |||||
H2344 | 220 | 200 | 186 | 280 | 153644 | 1536244 | 16.7 | |||||
H2348 | 240 | 220 | 199 | 300 | 153648 | 1536248 | 19.7 | |||||
H2352 | 260 | 240 | 211 | 330 | 153652 | 1536252 | 24.2 | |||||
H2356 | 280 | 260 | 224 | 350 | 153656 | 1536256 | 27.2 | |||||
