Linear bearings are a linear motion system produced at a low cost for use with an infinite stroke and a cylindrical shaft. Widely used in precision machine tools, textile machinery, food packaging machinery, printing machinery and other industrial machinery sliding parts.
 |

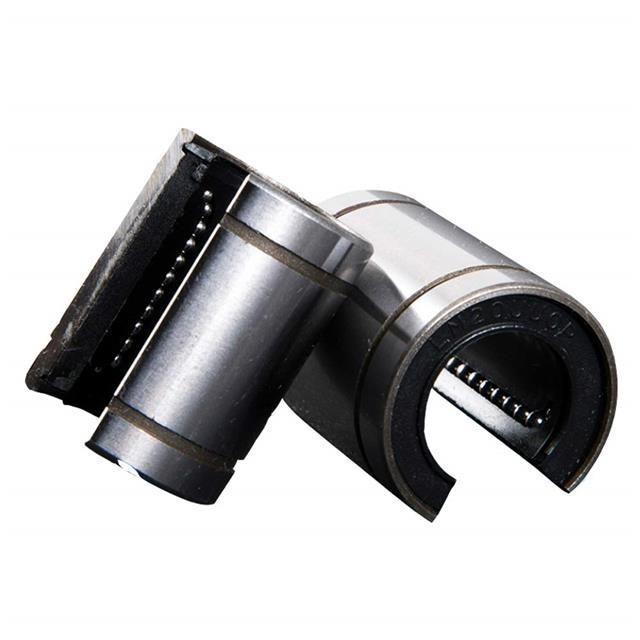

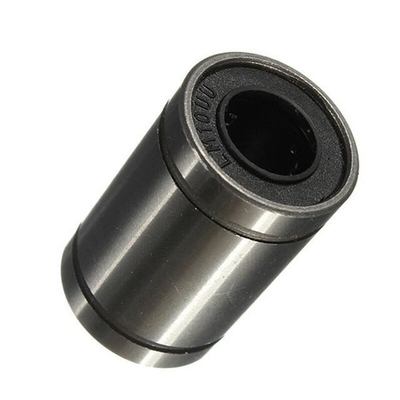

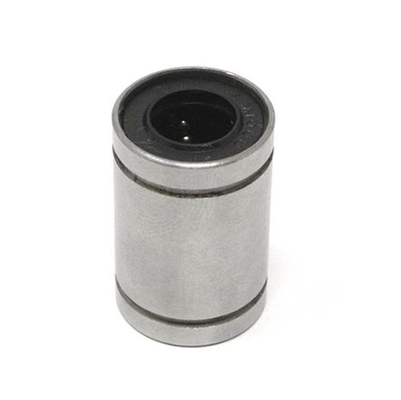

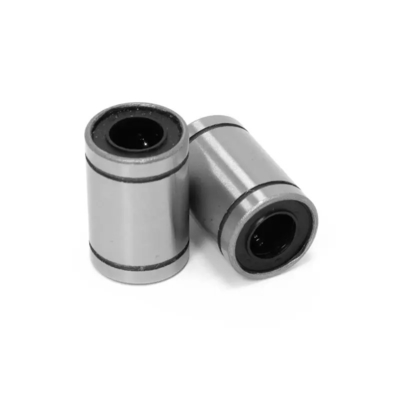

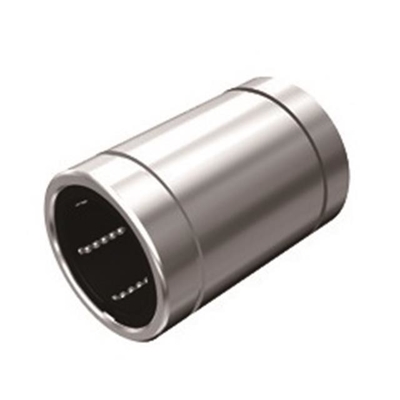

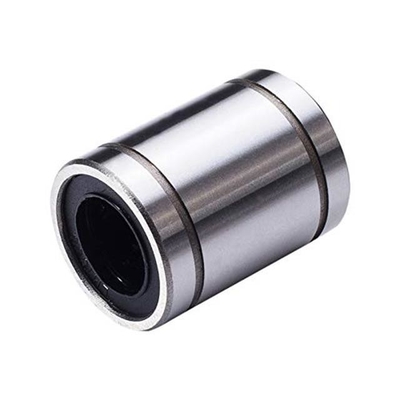

3D Linear Motion Bearings LM6UU LM8UU LMF12UU LM20UU LM25UU LM30UU LM12UU LM16UU Shaft Linear Slide Bearing
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | HANSEL&MOTIONTECH |
| Model Number: | LM8UU |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 pieces |
|---|---|
| Price: | $0.65/pieces 10-99 pieces |
| Delivery Time: | If stock, in 7days or based on your order quantity |
|
Detail Information |
|||
| Type: | LINEAR, Liner Bearing | Applicable Industries: | Hotels, Garment Shops, Manufacturing Plant, Building Material Shops, Machinery Repair Shops, Food & Beverage Factory, Restaurant, Farms, Retail, Home Use, Food Shop, Printing Shops, Energy & Mining, Construction Works , Food & Beverage Shops, Other, Advert |
|---|---|---|---|
| Precision Rating: | P5 | Packaging: | Carton Packaging Wooden Box Packaging |
| Material: | Chrome Steel Gcr15 | Feature: | Long Operating Life |
| Package: | Paper Box + Carton + Wooden Pallet | Service: | OEM Customized Services |
| Quality: | 100% Tested | Structure: | Linear Rail + Linear Block |
| Application: | Printing Machinery /textile Machinery/3D/CNC | Lubrication: | Oil Grease |
Product Description
Product Description
product description:
Specification
Bearing Code | Ball | Weight | Inner size(dr) | Outer size(D) | Length(L) |
LM6UU | 4 rows | 8g | 6mm | 12mm | 19mm |
LM8UU | 4 rows | 17g | 8mm | 15mm | 24mm |
LM10UU | 4 rows | 30g | 10mm | 19mm | 29mm |
LM12UU | 5 rows | 31.5g | 12mm | 21mm | 30mm |
LM13UU | 5 rows | 43g | 13mm | 23mm | 32mm |
LM16UU | 5 rows | 69g | 16mm | 28mm | 37mm |
LM20UU | 5 rows | 87g | 20mm | 32mm | 42mm |
LM25UU | 6 rows | 220g | 25mm | 40mm | 59mm |
LM30UU | 6 rows | 250g | 30mm | 45mm | 64mm |
LM35UU | 6 rows | 390g | 35mm | 52mm | 70mm |
LM40UU | 6 rows | 585g | 40mm | 60mm | 80mm |
LM50UU | 6 rows | 1580g | 50mm | 80mm | 100mm |
LM60UU | 6 rows | 2000g | 60mm | 90mm | 110mm |
LM80UU | 6 rows | 4520g | 80mm | 120mm | 140mm |
