Linear bearings are a linear motion system produced at a low cost for use with an infinite stroke and a cylindrical shaft. Widely used in precision machine tools, textile machinery, food packaging machinery, printing machinery and other industrial machinery sliding parts.
 |

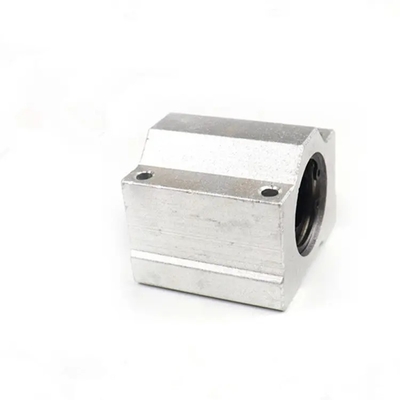

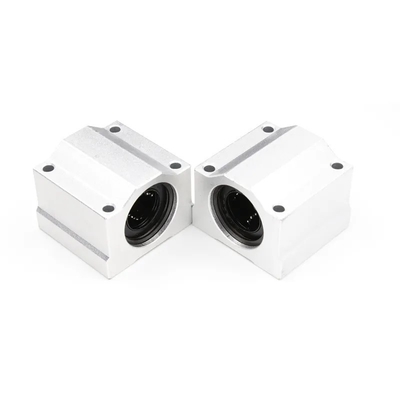

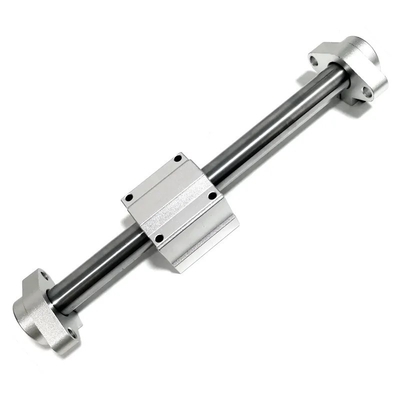

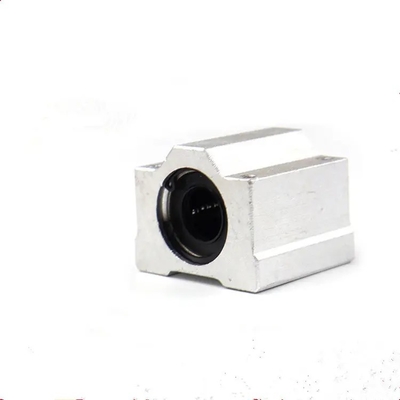

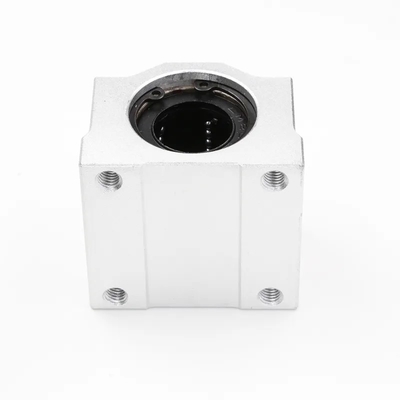

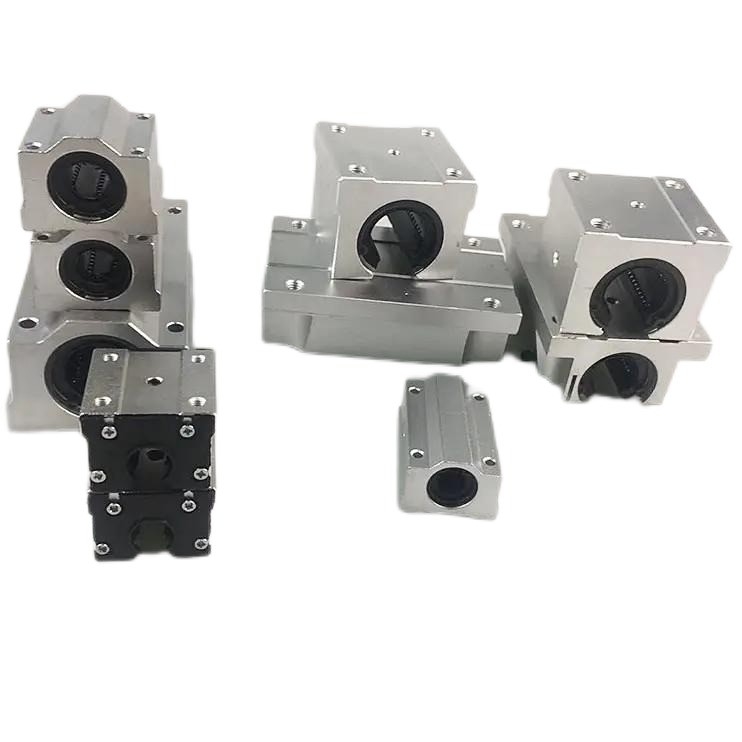

SCS Series SC8UU Linear Motion Bearing Slide Bushing for CNC Sliding 100% Tested
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | HANSEL&MOTIONTECH |
| Model Number: | SC8UU |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 pieces |
|---|---|
| Price: | $1.21/pieces 10-99 pieces |
| Delivery Time: | If stock, in 7days or based on your order quantity |
|
Detail Information |
|||
| Type: | LINEAR, Liner Bearing | Applicable Industries: | Hotels, Garment Shops, Manufacturing Plant, Building Material Shops, Machinery Repair Shops, Food & Beverage Factory, Restaurant, Farms, Retail, Home Use, Food Shop, Printing Shops, Energy & Mining, Construction Works , Food & Beverage Shops, Other, Advert |
|---|---|---|---|
| Precision Rating: | P5 | Packaging: | Carton Packaging Wooden Box Packaging |
| Material: | Chrome Steel Gcr15 | Feature: | Long Operating Life |
| Package: | Paper Box + Carton + Wooden Pallet | Service: | OEM Customized Services |
| Quality: | 100% Tested | Structure: | Linear Rail + Linear Block |
| Application: | Printing Machinery /textile Machinery/3D/CNC | Lubrication: | Oil Grease |
Product Description
Product Description
product description:
Specification
Model | Bearing ID(mm) | h | D | W | H | G | A | J | E |
SC8UU | φ8 | 11 | 17 | 34 | 22 | 18 | 6 | 24 | 5 |
SC10UU | φ10 | 13 | 20 | 40 | 26 | 21 | 8 | 28 | 6 |
SC12UU | φ12 | 15 | 22 | 44 | 30 | 24.5 | 8 | 33 | 5.5 |
SC13UU | φ13 | 15 | 22 | 44 | 30 | 24.5 | 8 | 33 | 5.5 |
SC16UU | Φ16 | 19 | 25 | 50 | 38.5 | 32.5 | 9 | 36 | 7 |
SC20UU | φ20 | 21 | 27 | 54 | 41 | 35 | 11 | 40 | 7 |
SC25UU | φ25 | 26 | 38 | 76 | 51.5 | 41 | 12 | 54 | 11 |
SC30UU | φ30 | 30 | 39 | 78 | 59.5 | 49 | 15 | 58 | 10 |
SC35UU | φ35 | 34 | 45 | 90 | 68 | 54 | 18 | 70 | 10 |
SC40UU | φ40 | 40 | 102 | 78 | 62 | 20 | 80 | 11 | |
SC50UU | φ50 | 52 | 61 | 122 | 102 | 80 | 24 | 100 | 11 |
