Linear bearings are a linear motion system produced at a low cost for use with an infinite stroke and a cylindrical shaft. Widely used in precision machine tools, textile machinery, food packaging machinery, printing machinery and other industrial machinery sliding parts.
 |

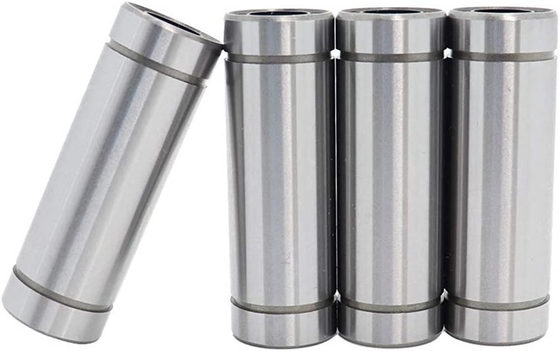

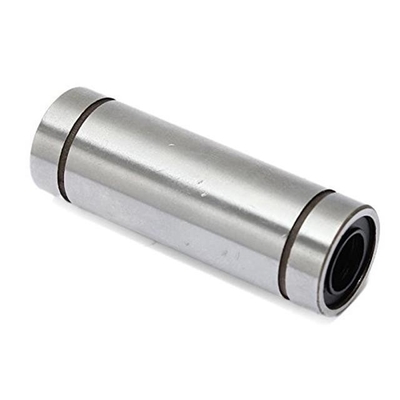

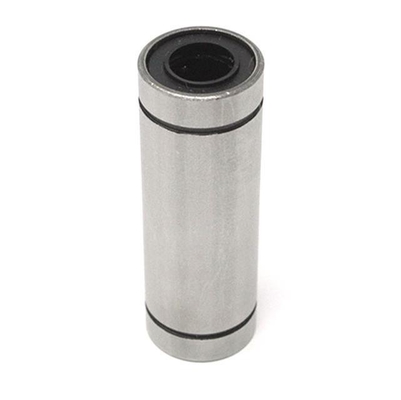

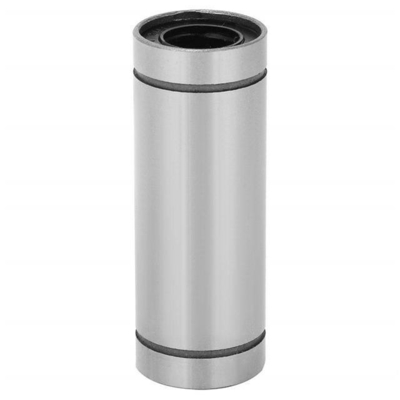

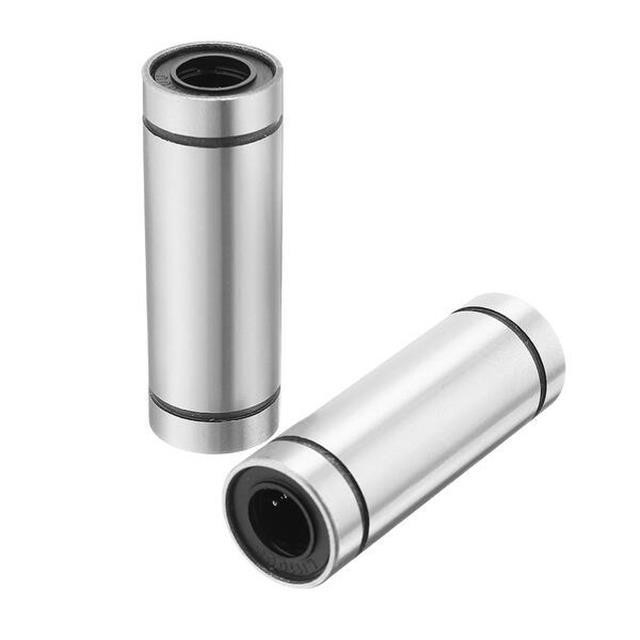

High Precision LM8LUU Linear Motion 8mm Ball Bushing Bearing for 3D Printing Machinery
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | HANSEL&MOTIONTECH |
| Model Number: | LM8LUU |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 pieces |
|---|---|
| Price: | $1.25/pieces 10-99 pieces |
| Delivery Time: | If stock, in 7days or based on your order quantity |
|
Detail Information |
|||
| Type: | LINEAR, Liner Bearing | Applicable Industries: | Hotels, Garment Shops, Manufacturing Plant, Building Material Shops, Machinery Repair Shops, Food & Beverage Factory, Restaurant, Farms, Retail, Home Use, Food Shop, Printing Shops, Energy & Mining, Construction Works , Food & Beverage Shops, Other, Advert |
|---|---|---|---|
| Precision Rating: | P5 | Packaging: | Carton Packaging Wooden Box Packaging |
| Material: | Chrome Steel Gcr15 | Feature: | Long Operating Life |
| Package: | Paper Box + Carton + Wooden Pallet | Service: | OEM Customized Services |
| Quality: | 100% Tested | Structure: | Linear Rail + Linear Block |
| Application: | Printing Machinery /textile Machinery/3D/CNC | Lubrication: | Oil Grease |
Product Description
Product Description
product description:
Specification
Bearing Code | Ball | Weight | Inner size(dr) | Outer size(D) | Length(L) |
LM6UU | 4 rows | 8g | 6mm | 12mm | 19mm |
LM8UU | 4 rows | 17g | 8mm | 15mm | 24mm |
LM10UU | 4 rows | 30g | 10mm | 19mm | 29mm |
LM12UU | 5 rows | 31.5g | 12mm | 21mm | 30mm |
LM13UU | 5 rows | 43g | 13mm | 23mm | 32mm |
LM16UU | 5 rows | 69g | 16mm | 28mm | 37mm |
LM20UU | 5 rows | 87g | 20mm | 32mm | 42mm |
LM25UU | 6 rows | 220g | 25mm | 40mm | 59mm |
LM30UU | 6 rows | 250g | 30mm | 45mm | 64mm |
LM35UU | 6 rows | 390g | 35mm | 52mm | 70mm |
LM40UU | 6 rows | 585g | 40mm | 60mm | 80mm |
LM50UU | 6 rows | 1580g | 50mm | 80mm | 100mm |
LM60UU | 6 rows | 2000g | 60mm | 90mm | 110mm |
LM80UU | 6 rows | 4520g | 80mm | 120mm | 140mm |
Related Products
Company Profile
Shandong Ah-factory Import & Export Co.,Ltd
Shandong Ah-factory mport & Export Co.,Ltd is located in Jinan,Shandong province. Our predecessor is committed to the export of bearings, sleeves and seals, which has more than 16 years’ experience. We have cooperated with more than 1000 bearing factories and own shares in a number of factories.
Exhibition
Packing & Delivery
FAQ
Q1:IS you company factory or Trade Company?
We have our own factory, our type is factory +trade.
Q2: Could you accept OEM and customize?
Yes, we can customize it for you according to the sample or drawing.
Q3: What is the MOQ of your company?
Our MOQ is normally 10pcs, anyway lower MOQ is also acceptable with a little higher cost, as the more you purchase the cheaper cost you could get.
Q4: Could you tell me the material of your bearing?
We have chrome steel, stainless steel, and ceramic.
Q5: Could you offer door-to-door service?
Yes, by express(DHL, FedEx, TNT, EMS,4-10 days to your city.)
Q6: Could you tell me the delivery time of your doors?
If stock, in 7days or based on your order quantity.
Want to Know more details about this product
