| Place of Origin: | Shandong, China |
| Brand Name: | HANSEL |
| Model Number: | 10*150mm |
| Minimum Order Quantity: | 10 pieces |
|---|---|
| Price: | $0.99/pieces 10-999 pieces |
| Delivery Time: | If stock, in 7days or based on your order quantity |
|
Detail Information |
|||
| Type: | LINEAR | Applicable Industries: | Building Material Shops, Manufacturing Plant, Retail, Printing Shops, Construction Works , Energy & Mining, Advertising Company |
|---|---|---|---|
| Precision Rating: | P0 P6 P5 P4 P2 | Product's Name: | Linear Ball Bearing |
| Material: | Chrome Steel Gcr15 | Application: | Printing Machinery /textile Machinery/3D/CNC |
| Feature: | Long Operating Life | Stock: | Great Supplying Ability |
| Cage: | Steel Cage.copper Cage.nylon Cage | MOQ: | 10pcs |
| LUBRICATION: | Oil Grease | VIBRATION: | V1 V2 V3 V4 |
| Service: | OEM Customized Services | ||

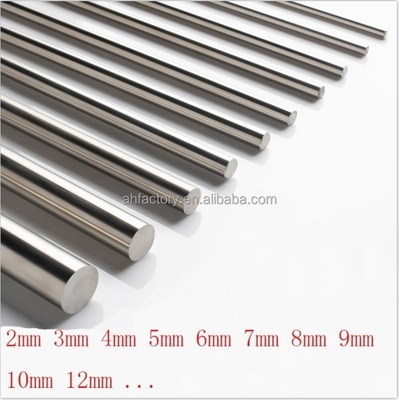

Diameter | 3, 4, 5, 6, 8, 10,12,16, 20, 25, 30, 35, 40, 45, 50, 55, 60, 70, 80mm( according to your requirement.) |
Length | 100 ~ 1000mm |
Quality | ISO9001:2008 |
Material | GCr15 steel ; |
Surface finish | Hard Chrome plating |
Plating Thickness | 10um ~ 20um in radius. |
Heat treated | Not Hardened / Induction Hardened |
Surface Hardness | HRC:58-62 |
Hardness Depth | 0.8-3.0mm |
OD tolerance | g6, h6, h7 or according to your requirement. |
Roughness | Ra<0.4 |

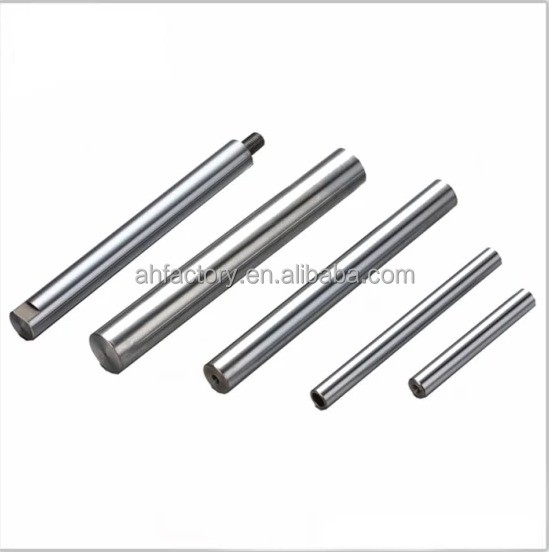

Custom-made | End Stepped, End Tapped, End Tread, Wrench Flats, Cross Drilled Holes, Key Groove, Set Screw Grooved, and so on. |
