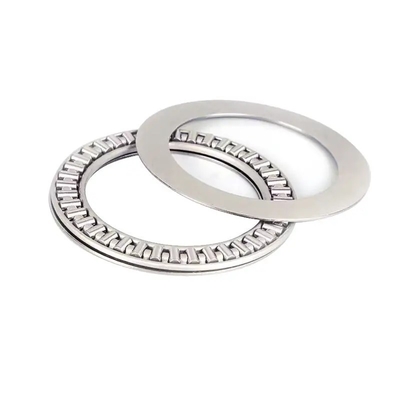

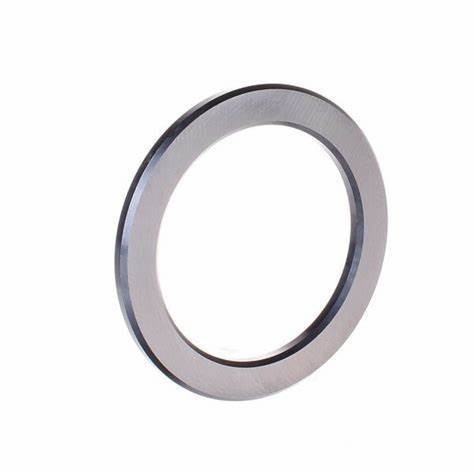

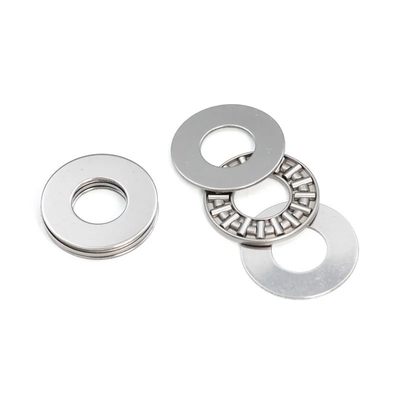

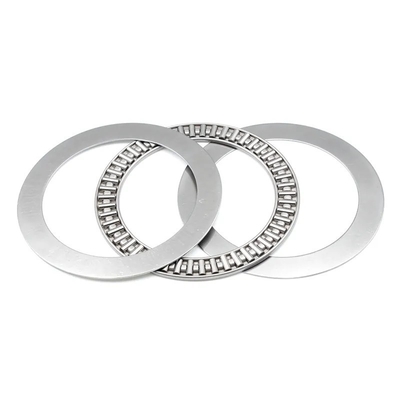

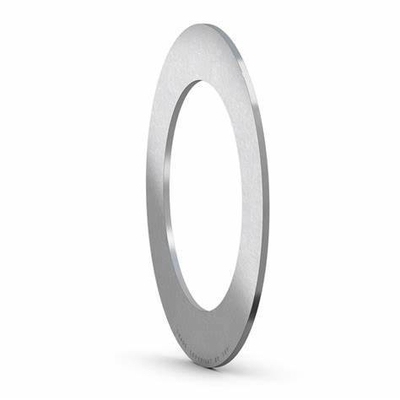

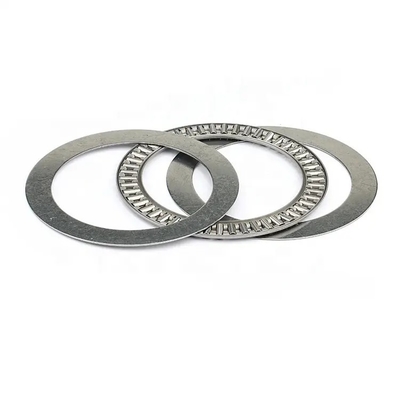

P5 Precision Rating AS7095 AS80105 AS85110 AS90120 AS100135 Steel Axial Thrust Washer
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | HANSEL&MOTIONTECH |
| Model Number: | AS85110 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 pieces |
|---|---|
| Price: | $0.49/pieces 10-999 pieces |
| Delivery Time: | If stock, in 7days or based on your order quantity |
|
Detail Information |
|||
| Bore Size: | 0 - 85 Mm | Applicable Industries: | Garment Shops, Hotels, Machinery Repair Shops, Food & Beverage Factory, Manufacturing Plant, Building Material Shops, Home Use, Restaurant, Farms, Food Shop, Retail, Construction Works , Printing Shops, Energy & Mining, Other, Food & Beverage Shops, Advert |
|---|---|---|---|
| Type: | Needle | Precision Rating: | P5 |
| Seals Type: | Open | Number Of Row: | Single Row |
| Application: | Mining. Metallurgy. Agriculture. Chemical | Structure: | Needle Pin+Slide Track |
| Material: | Gcr15 Steel Bearing | Certificate: | ISO9001:2008 |
| Service: | OEM Service.Design Service | Cage: | Steel Cage Nylon Cage |
| MOQ: | 1 Pcs | Keywords: | Needle Roller Bearingsrs |
| Delivery Time: | 1-15days | Stock: | Availalbe |
Product Description
Product Description
Specification
shaft | bearing | dimension(mm) | Basic Load Rating(N) | limited speed(rpm) | weight | ||||||||
dia. | type | (g) | |||||||||||
(mm) | Inner | Outer | Width | dynamic | static | grease | oil | ||||||
Dc1 | Dc | Dw. | |||||||||||
4 | AXK 0414 TN | 4 | 14 | 2 | 4100 | 7900 | 14000 | 5500 | 0.7 | ||||
5 | AXK 0515 TN | 5 | 15 | 2 | 4000 | 8500 | 13000 | 4800 | 0.8 | ||||
6 | AXK 0619 TN | 6 | 19 | 2 | 6000 | 12000 | 12000 | 4200 | 1 | ||||
8 | AXK 0821 TN | 8 | 21 | 2 | 7100 | 13500 | 11000 | 4000 | 2 | ||||
10 | AXK 1024 | 10 | 24 | 2 | 7800 | 24000 | 9500 | 3600 | 3 | ||||
12 | AXK 1226 | 12 | 26 | 2 | 8200 | 26700 | 7200 | 3200 | 3 | ||||
15 | AXK 1528 | 15 | 28 | 2 | 9500 | 33000 | 6500 | 3000 | 4 | ||||
17 | AXK 1730 | 17 | 30 | 2 | 10200 | 36500 | 5500 | 2800 | 4 | ||||
20 | AXK 2035 | 20 | 35 | 2 | 11000 | 43000 | 5000 | 2600 | 5 | ||||
25 | AXK 2542 | 25 | 42 | 2 | 12500 | 538000 | 4500 | 2300 | 7 | ||||
30 | AXK 3047 | 30 | 47 | 2 | 14000 | 656000 | 4100 | 2100 | 8 | ||||
35 | AXK 3552 | 35 | 52 | 2 | 15500 | 770000 | 3700 | 2000 | 10 | ||||
40 | AXK 4060 | 40 | 60 | 3 | 25000 | 1100000 | 3200 | 1900 | 16 | ||||
45 | AXK 4565 | 45 | 65 | 3 | 25800 | 1250000 | 3000 | 1700 | 18 | ||||
50 | AXK 5070 | 50 | 70 | 3 | 27600 | 1370000 | 2800 | 1600 | 20 | ||||
55 | AXK 5578 | 55 | 78 | 3 | 35000 | 1950000 | 2600 | 1500 | 28 | ||||
60 | AXK 6085 | 60 | 85 | 3 | 38600 | 2400000 | 2500 | 1100 | 33 | ||||
65 | AXK 6590 | 65 | 90 | 3 | 41000 | 2580000 | 2400 | 1000 | 35 | ||||
70 | AXK 7095 | 70 | 95 | 4 | 50000 | 2670000 | 2100 | 950 | 60 | ||||
75 | AXK 75100 | 75 | 100 | 4 | 51000 | 2750000 | 1900 | 900 | 61 | ||||
80 | AXK 80105 | 80 | 105 | 4 | 52400 | 2850000 | 1800 | 870 | 63 | ||||
85 | AXK 85110 | 85 | 110 | 4 | 54000 | 3000000 | 1700 | 850 | 67 | ||||
90 | AXK 90120 | 90 | 120 | 4 | 66000 | 4100000 | 1580 | 800 | 86 | ||||
100 | AXK 100135 | 100 | 135 | 4 | 76000 | 5570000 | 1400 | 770 | 104 | ||||
110 | AXK 110145 | 110 | 145 | 4 | 82000 | 6000000 | 1300 | 740 | 122 | ||||
120 | AXK 120155 | 120 | 155 | 4 | 84800 | 6620000 | 1200 | 700 | 131 | ||||
130 | AXK 130170 | 130 | 170 | 5 | 110000 | 9300000 | 1100 | 660 | 205 | ||||
140 | AXK 140180 | 140 | 180 | 5 | 115000 | 9100000 | 1000 | 620 | 219 | ||||
150 | AXK 150190 | 150 | 190 | 5 | 118000 | 9600000 | 950 | 580 | 232 | ||||
160 | AXK 160200 | 160 | 200 | 5 | 125000 | 10000000 | 900 | 500 | 246 | ||||
Related Products
Company Profile
Shandong Ah-factory Import & Export Co.,Ltd
Exhibition
Packing & Delivery
FAQ
Q1:IS you company factory or Trade Company?
We have our own factory, our type is factory +trade.
Q2: Could you accept OEM and customize?
Yes, we can customize it for you according to the sample or drawing.
Q3: What is the MOQ of your company?
Our MOQ is normally 10pcs, anyway lower MOQ is also acceptable with a little higher cost, as the more you purchase the cheaper cost you could get.
Q4: Could you tell me the material of your bearing?
We have chrome steel, stainless steel, and ceramic.
Q5: Could you offer door-to-door service?
Yes, by express(DHL, FedEx, TNT, EMS,4-10 days to your city.)
Q6: Could you tell me the delivery time of your doors?
If stock, in 7days or based on your order quantity.
