Construction Works Long Life 29413M Budget Spherical Roller Thrust Bearing 65x140x65mm ISO9001 2008 Certified
Product Details:
| Place of Origin: | Sweden |
| Brand Name: | S.K.F. |
| Model Number: | 29413M |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 pieces |
|---|---|
| Price: | $45.29/pieces 10-99 pieces |
| Delivery Time: | If stock, in 7days or based on your order quantity |
|
Detail Information |
|||
| Type: | Roller, Spericall Roller | Structure: | Spherical |
|---|---|---|---|
| Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Food & Beverage Factory, Manufacturing Plant, Machinery Repair Shops, Restaurant, Farms, Home Use, Food Shop, Retail, Printing Shops, Construction Works , Food & Beverage Shops, Energy & Mining, Advertising C | Precision Rating: | P5 |
| Seals Type: | Open | Number Of Row: | Double Row |
| Feature: | Long Life High Speed | Material: | Chrome Steel GCR15 |
| Application: | Automotive.tractor.construction Machinery.rolling Mill | Package: | Original Packing |
| Cage: | Steel Cage.copper Cage.nylon Cage | MOQ: | 1 Pc |
| Quality: | High Qulity | Certificate: | ISO9001:2008 |
| Service: | OEM Service.Design Service | ||
Product Description
Product Description
Spherical Roller Bearings are designed to work in applications where severe misalignment exists whether from mounting or shaft
deflection and with relatively heavy radial loads and some axial loads in either direction. They are also extremely resistant to
shock loads and their self-aligning feature allows full capacity loading despite shaft deflection. They are very similar in
purpose to Self-Aligning Double Row Ball Bearings, except the Spherical Roller Bearings are designed to be more robust by carry
heavier loads but at lower maximum speeds. These bearings have barrel-shaped rollers between the inner ring, which has two
raceways, and the outer ring which has one spherical raceway. They are self-aligning because the center of curvature of the outer
ring raceway surface coincides with the bearing axis.
deflection and with relatively heavy radial loads and some axial loads in either direction. They are also extremely resistant to
shock loads and their self-aligning feature allows full capacity loading despite shaft deflection. They are very similar in
purpose to Self-Aligning Double Row Ball Bearings, except the Spherical Roller Bearings are designed to be more robust by carry
heavier loads but at lower maximum speeds. These bearings have barrel-shaped rollers between the inner ring, which has two
raceways, and the outer ring which has one spherical raceway. They are self-aligning because the center of curvature of the outer
ring raceway surface coincides with the bearing axis.
Specification
Bearing NO. | Specification | Weight | ||||
d(mm) | D(mm) | T(mm) | (kg) | |||
29412E | 60 | 130 | 42 | 2.6 | ||
29413E | 65 | 140 | 45 | 3.2 | ||
29414E | 70 | 150 | 48 | 3.9 | ||
29415E | 75 | 160 | 51 | 4.7 | ||
29416E | 80 | 170 | 54 | 5.6 | ||
29417E | 85 | 180 | 58 | 6.75 | ||
29418E | 90 | 190 | 60 | 7.75 | ||
29420E | 100 | 210 | 67 | 10.5 | ||
29422E | 110 | 230 | 73 | 13.5 | ||
29424E | 120 | 250 | 78 | 17.5 | ||
29426E | 130 | 270 | 85 | 22 | ||
29428E | 140 | 280 | 85 | 23 | ||
29430E | 150 | 300 | 90 | 28 | ||
29432E | 160 | 320 | 95 | 33.5 | ||
29434E | 170 | 340 | 103 | 44.5 | ||
29436E | 180 | 360 | 109 | 52.5 | ||
29438E | 190 | 380 | 115 | 60.5 | ||
29440E | 200 | 400 | 122 | 72 | ||
29444 E | 220 | 420 | 122 | 75 | ||
29448 E | 240 | 440 | 122 | 80 | ||
29452 E | 260 | 480 | 132 | 105 | ||
29456 E | 280 | 520 | 145 | 135 | ||
29460 E | 300 | 540 | 145 | 140 | ||
29464 E | 320 | 580 | 155 | 175 | ||
29468 E | 340 | 620 | 170 | 220 | ||
29472 EM | 360 | 640 | 170 | 230 | ||
29476 EM | 380 | 670 | 175 | 260 | ||
29480 EM | 400 | 710 | 185 | 310 | ||
Related Products
Company Profile
Shandong Ah-factory Import & Export Co.,Ltd
Exhibition

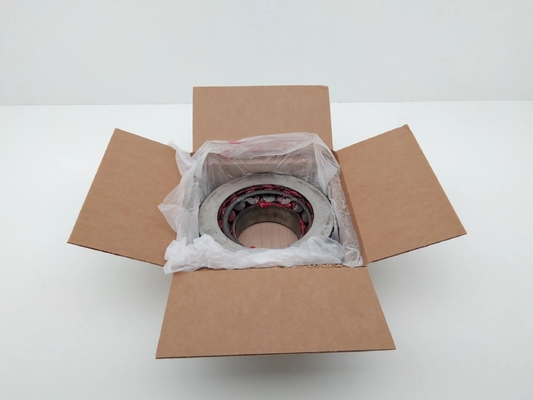

Packing & Delivery
