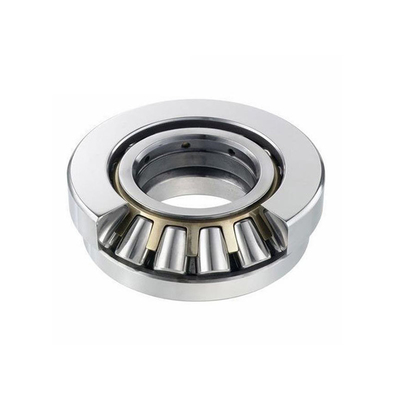

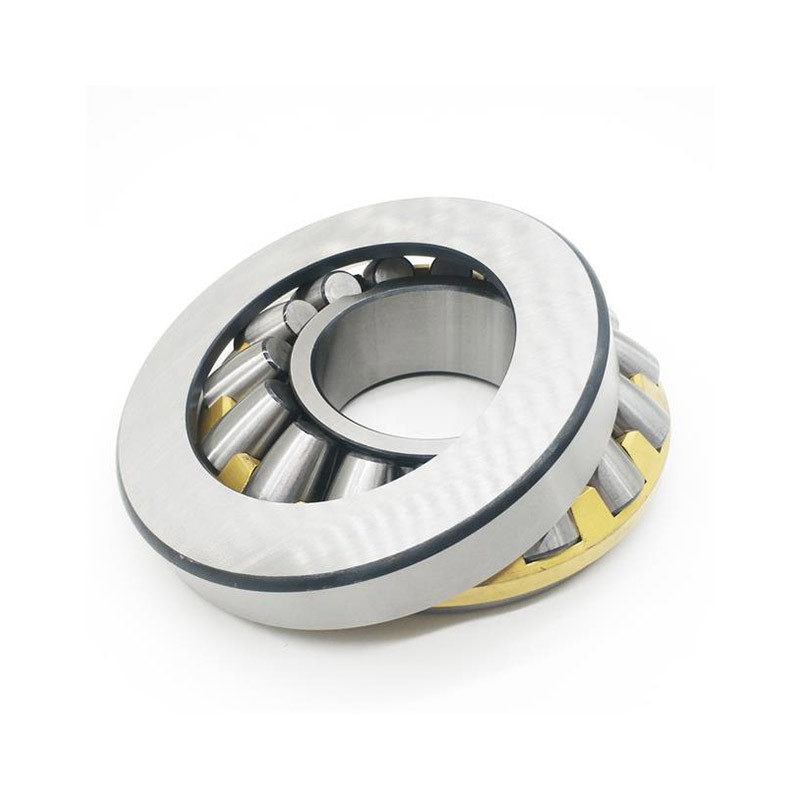

High Precision Single Row Thrust Roller Bearing 29420 for Motorcycle Spare Parts
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | MOTIONTECH and HANSEL |
| Model Number: | 29420 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 pieces |
|---|---|
| Price: | $3.19/pieces 100-999 pieces |
| Packaging Details: | 1.Kraft paper+Cartons+Wooden case pallets<br>2.Plastice tube+Cartons+Wooden case pallets;<br>3.Single box+Outer carton+Wooden case pallets;<br>4.According to your requirements. |
| Delivery Time: | If stock, in 7days or based on your order quantity |
| Supply Ability: | 100000 Piece/Pieces per Month |
|
Detail Information |
|||
| Type: | Roller | Structure: | Thrust |
|---|---|---|---|
| Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advert | Precision Rating: | P0/P2/P4/P5/P6 |
| Seals Type: | OPEN | Number Of Row: | Single Row |
| Product Name: | Spherical Roller Thrust Bearings | Material: | Chrome Steel GCR15 |
| Cage: | Steel Cage.copper Cage.nylon Cage | Feature: | Long Life |
| Service: | OEM Customized Services | Application: | Automotive.tractor.construction Machinery.rolling Mill |
| Vibration: | Z1V1 Z2V2 Z3V3 Z4V4 | Package: | Original Package |
| CERTIFICATE: | ISO9001:2008 | ||
Product Description
Product Description
product description:
Thrust bearings specifically bear axial force, also known as thrust bearings, it is a separation type of bearing, usually can not limit the radial displacement of the shaft, the limit speed is very low, the usual classification is: One-way thrust ball bearings only bear single direction axial load force, Two-way thrust ball bearing can bear two-way axial load force; If it is a thrust roller bearing, it can withstand the mixed load force of the axial load and a certain radial load, but the radial load is not greater than 55% of the axial load. Compared to other thrust bearings, thrust roller bearings have lower friction.
Specification
New Designations | 29420 | |
Old Code | 9039420 | |
Main demensions | 100 × 210 × 67 | Bore Dia × Outside Dia × Width Dia (mm) |
M | 11.5 kg | Weight |
ID | 100 mm | Inside diameter(I.D.) |
OD | 210 mm | Outside diameter(O.D.) |
T(B) | 67 mm | Thickness(W.D.) |
C | 680 kN | Radial dynamic load rating |
C0 | 1900 kN | Radial static load rating |
Grease rpm | 1000 r/min | Reference speed |
Oil rpm | 1400 r/min | Limiting speed |
Category | Thrust Spherical Roller Bearings |
