Shandong Ah-factory mport & Export Co.,Ltd is located in Jinan,Shandong province. Our predecessor is committed to the export of bearings, sleeves and seals, which has more than 16 years’ experience. We have cooperated with more than 1000 bearing factories and own shares in a number of factories.
 |

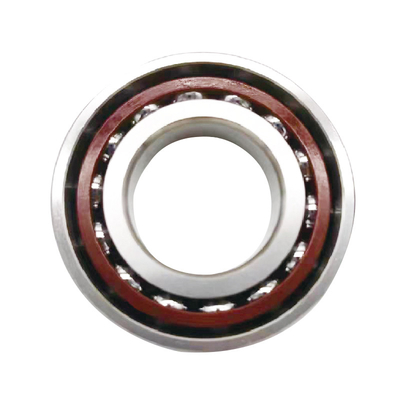

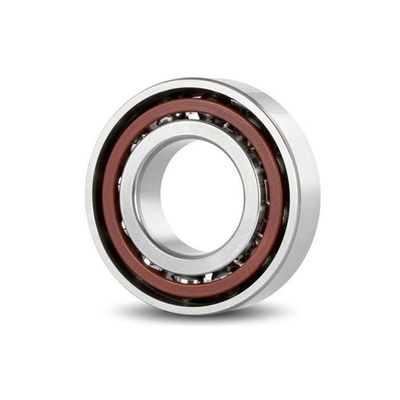

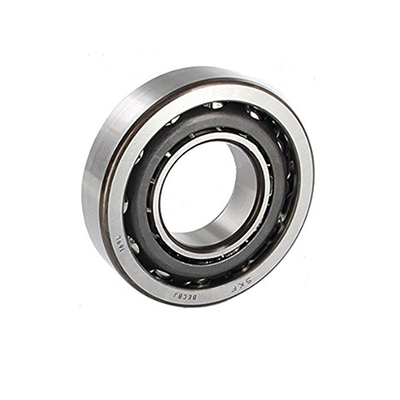

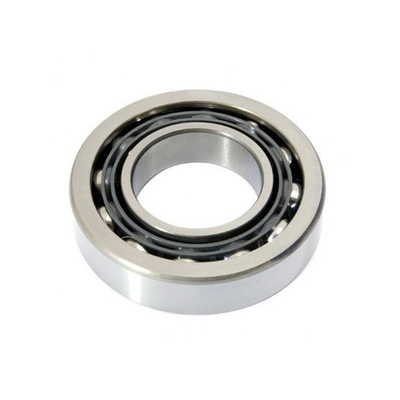

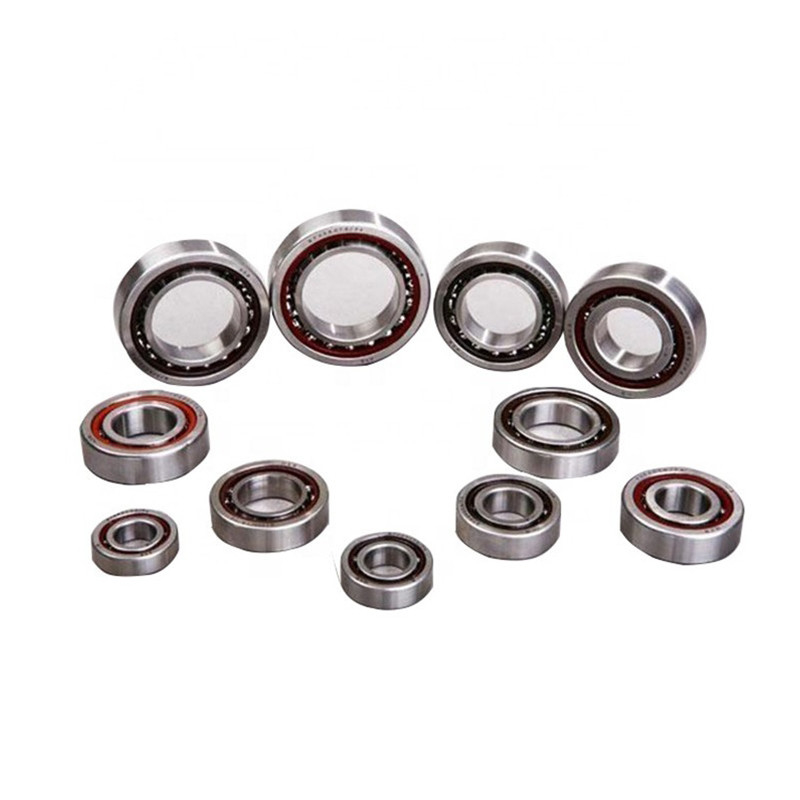

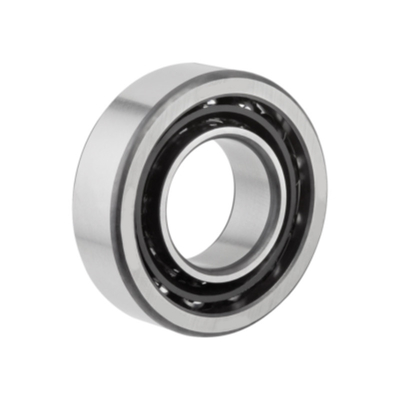

Single Row Angular Contact Ball Bearing 7208BTN 40x80x18 with P5 Precision Rating
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | HANSEL&MOTIONTECH |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 pieces |
|---|---|
| Price: | $3.99/pieces 2-99 pieces |
| Delivery Time: | If stock, in 7days or based on your order quantity |
|
Detail Information |
|||
| Type: | BALL, Angular Contact Ball Bearing | Structure: | Angular Contact |
|---|---|---|---|
| Applicable Industries: | Manufacturing Plant, Food & Beverage Factory, Hotels, Building Material Shops, Machinery Repair Shops, Farms, Home Use, Restaurant, Food Shop, Printing Shops, Retail | Precision Rating: | P5 |
| Seals Type: | Sealed | Number Of Row: | Single Row |
| Application: | Machinery Tool | DELIVERY: | 1~15days |
| Keywords: | Hybrid Angular Contact Ball Bearings | Brand: | Follow Customer's Request |
| Quality: | 100% Tested | Package: | Original Packing |
| Service: | OEM Customized Services | Lubrication: | Oil Grease |
| Bearing Material: | Bearing Steel\Gcr15 | ||
Product Description
Product Description
Specification
Boundary dimensions(mm) | Limiting speeds(rpm) | Mass(Kg) | |||||||||||
d | D | B | rs min | r1s min | Grease | Oil | (Approx.) | Bearing Number | |||||
100 | 180 | 34 | 2.1 | 1.1 | 3,900 | 5,200 | 3.2 | 7220 | |||||
75 | 130 | 25 | 1.5 | 1 | 5,300 | 7, 100 | 1. 17 | 7215 | |||||
80 | 140 | 26 | 2 | 1 | 5,000 | 6,600 | 1.39 | 7216 | |||||
85 | 150 | 28 | 2 | 1 | 4,700 | 6,200 | 1.78 | 7217 | |||||
60 | 110 | 22 | 1.5 | 1 | 6,600 | 8,800 | 0.765 | 7212 | |||||
65 | 120 | 23 | 1.5 | 1 | 6, 100 | 8, 100 | 0.962 | 7213 | |||||
70 | 125 | 24 | 1.5 | 1 | 5,700 | 7,600 | 1.09 | 7214 | |||||
45 | 85 | 19 | 1.1 | 0.6 | 8,700 | 12,000 | 0.404 | 7209 | |||||
50 | 90 | 20 | 1.1 | 0.6 | 7,900 | 10,000 | 0.457 | 7210 | |||||
55 | 100 | 21 | 1.5 | 1 | 7, 100 | 9,500 | 0.6 | 7211 | |||||
30 | 62 | 16 | 1 | 0.6 | 12,000 | 16,000 | 0. 193 | 7206 | |||||
35 | 72 | 17 | 1.1 | 0.6 | 11,000 | 14,000 | 0.281 | 7207 | |||||
40 | 80 | 18 | 1.1 | 0.6 | 9,600 | 13,000 | 0.355 | 7208 | |||||
17 | 40 | 12 | 0.6 | 0.3 | 19,000 | 26,000 | 0.064 | 7203 | |||||
20 | 47 | 14 | 1 | 0.6 | 17,000 | 23,000 | 0.1 | 7204 | |||||
25 | 52 | 15 | 1 | 0.6 | 14,000 | 19,000 | 0. 125 | 7205 | |||||
Related Products
Company Profile
Shandong Ah-factory Import & Export Co.,Ltd
Exhibition
Packing & Delivery
FAQ
Q1:IS you company factory or Trade Company?
We have our own factory, our type is factory +trade.
Q2: Could you accept OEM and customize?
Yes, we can customize it for you according to the sample or drawing.
Q3: What is the MOQ of your company?
Our MOQ is normally 10pcs, anyway lower MOQ is also acceptable with a little higher cost, as the more you purchase the cheaper cost you could get.
Q4: Could you tell me the material of your bearing?
We have chrome steel, stainless steel, and ceramic.
Q5: Could you offer door-to-door service?
Yes, by express(DHL, FedEx, TNT, EMS,4-10 days to your city.)
Q6: Could you tell me the delivery time of your doors?
If stock, in 7days or based on your order quantity.
