Name: Tractor Full Complement Cylindrical Roller Bearing 203 204 205 206 207 208 209 210 211 NJ NU NUP NR For Gearbox
Brand: HANSEL
SKU: NJ206
Price: 2.39 USD
Availability: InStock
Rating: 5 (149 reviews)

Catagories

Contacts

Contacts:	Mr. Gao
Tel:	+86 18678514456
Fax:	86--18678514456

Contact Now

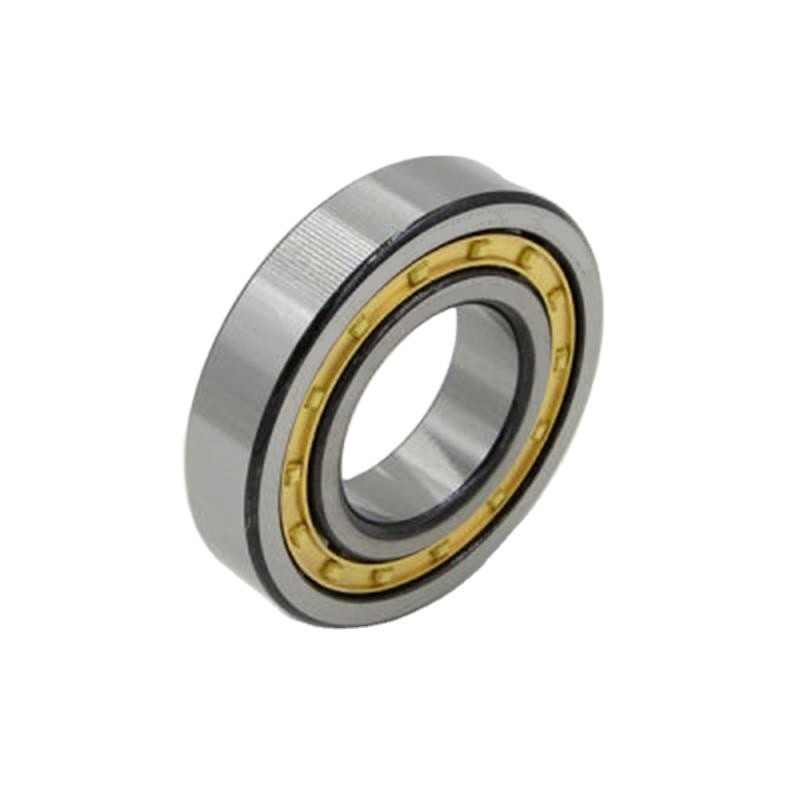

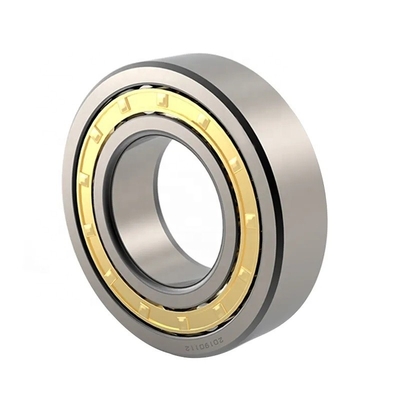

Tractor Full Complement Cylindrical Roller Bearing 203 204 205 206 207 208 209 210 211 NJ NU NUP NR For Gearbox

Product Details:

Place of Origin:	Shandong, China
Brand Name:	HANSEL
Model Number:	NJ206

Payment & Shipping Terms:

Minimum Order Quantity:	100 pieces
Price:	$2.39/pieces 100-999 pieces
Packaging Details:	1.Kraft paper+Cartons+Wooden case pallets<br>2.Plastice tube+Cartons+Wooden case pallets;<br>3.Single box+Outer carton+Wooden case pallets;<br>4.According to your requirements.
Delivery Time:	If stock, in 7days or based on your order quantity
Supply Ability:	100000 Piece/Pieces per Month

Get Best Price Contact Now

Detail Information
Product Description

Detail Information
Type:	Roller	Structure:	Cylindrical
Applicable Industries:	Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Retail, Printing Shops, Construction Works , Energy & Mining	Precision Rating:	P6, P0, P5, P4, P2
Seals Type:	Open	Number Of Row:	Single Row
Product Name:	Cylindrical Roller Beairngs	Feature:	Stable Performance:low Voice
Application:	Automotive.tractor.construction Machinery.rolling Mill	Material:	Chrome Steel GCR15/GCr15SiMn
Cage:	Steel Cage.Brass Cage.Nylon Cage	CERTIFICATE:	ISO9001:2008
Vibration:	V1 V2 V3 V4	Lubricate:	Oil Grease
Clearance:	C1 C2 C3	Stock:	Rich Stocks

Product Description

product description:

_{Cylindrical roller bearings have high load-bearing capacity, high-speed performance, wear resistance and ease of installation, and are suitable for various mechanical equipment.}

_{Cylindrical roller bearings are mainly used in the automotive industry, aerospace industry, railway transportation, heavy machinery, power industry, etc.}

_{We always adhere to customer-centricity and provide a full range of pre-sales, sales and after-sales services. No matter what problem you encounter, we will be happy to answer and solve it for you.}

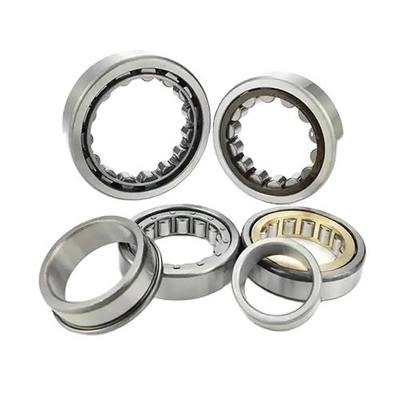

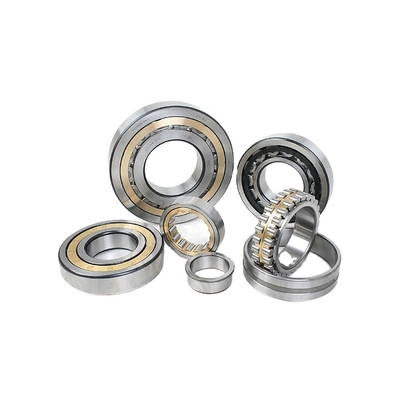

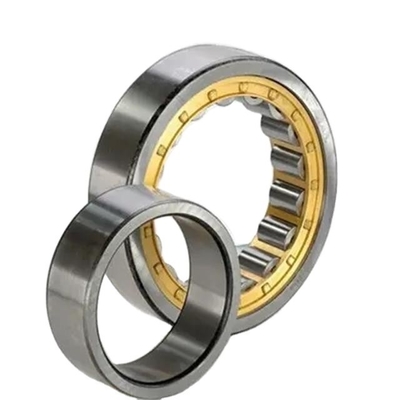

Cylindrical roller bearing rings are divided into the following shapes according to the presence or absence of ribs.

Specification

Boundary dimensions(mm)									Limiting speeds(rpm)	Mass(Kg)
d	D	B	rs min	r1s min	Grease	Oil	(Approx.)	Bearing Number
150	225	35	2.1	1.5	3,000	3,500	4.77	NU1030
120	180	28	2	1.1	3,800	4,400	2.44	NU1024
130	200	33	2	1.1	3,400	4,000	3.69	NU1026
140	210	33	2	1.1	3,200	3,800	4.05	NU1028
100	150	24	1.5	1.1	4,600	5,400	1.45	NU1020
105	160	26	2	1.1	4,300	5, 100	1.84	NU1021
110	170	28	2	1.1	4, 100	4,800	2.33	NU1022
85	130	22	1.1	1	5,400	6,300	1.03	NU1017
90	140	24	1.5	1.1	5, 100	5,900	1.33	NU1018
95	145	24	1.5	1.1	4,800	5,600	1.4	NU1019
70	110	20	1.1	1	6,500	7,600	0.699	NU1014
75	115	20	1.1	1	6, 100	7, 100	0.738	NU1015
80	125	22	1.1	1	5,700	6,700	0.98	NU1016
55	90	18	1.1	1	8,200	9,700	0.442	NU1011
60	95	18	1.1	1	7,500	8,800	0.474	NU1012
65	100	18	1.1	1	7,000	8,200	0.485	NU1013
40	68	15	1	0.6	11,000	13,000	0.22	NU1008
45	75	16	1	0.6	9,900	12,000	0.28	NU1009
