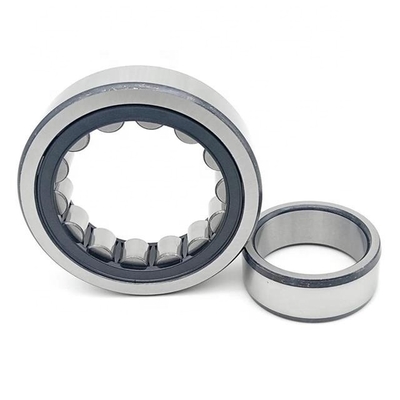

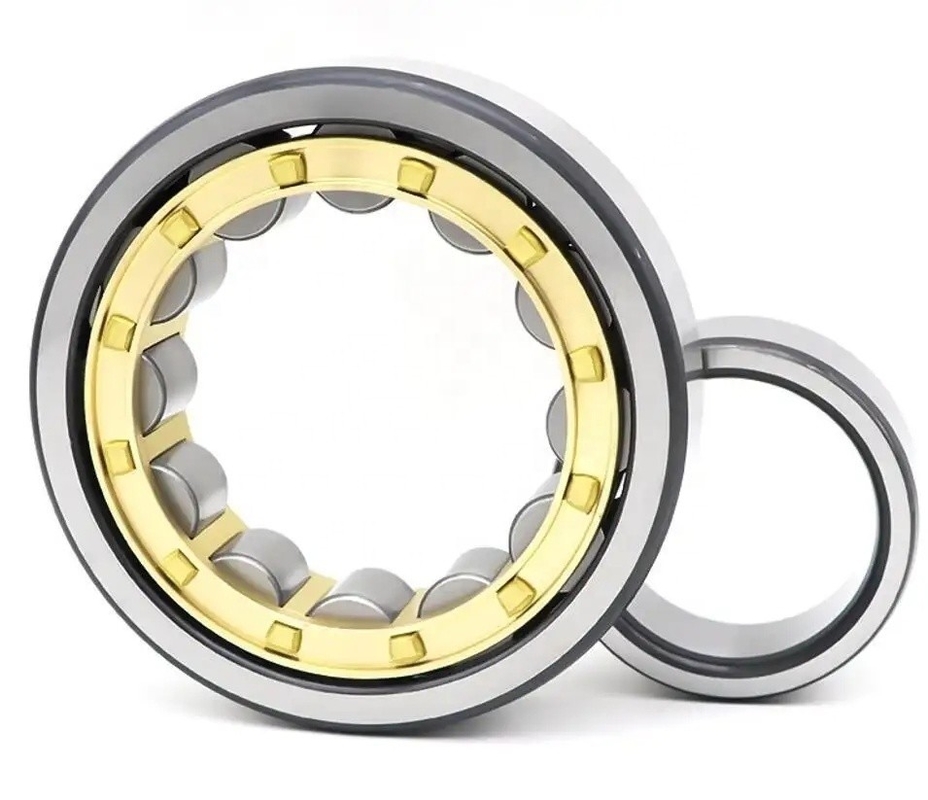

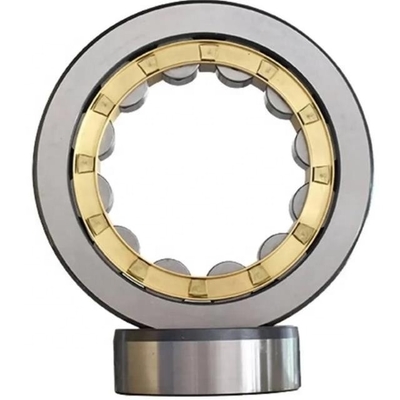

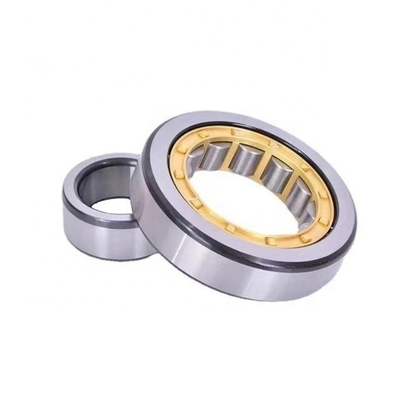

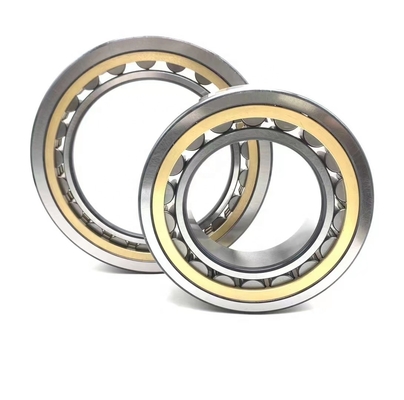

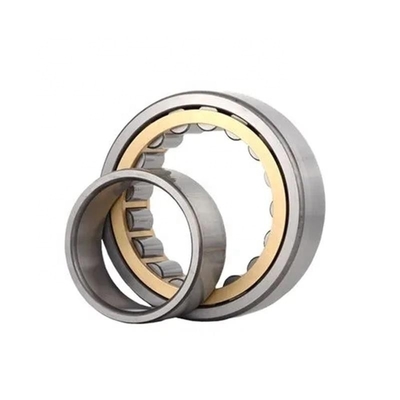

Name: NU2 Series Single Row Cylindrical Roller Bearing NU204E NU205E NU206E NU207E NU208E NU209E NU210E
Brand: MOTIONTECH and HANSEL
SKU: NU206E
Price: 2.68 USD
Availability: InStock
Rating: 4.8 (185 reviews)

Catagories

Contacts

Contacts:	Mr. Gao
Tel:	+86 18678514456
Fax:	86--18678514456

Contact Now

NU2 Series Single Row Cylindrical Roller Bearing NU204E NU205E NU206E NU207E NU208E NU209E NU210E

Product Details:

Place of Origin:	Shandong, China
Brand Name:	MOTIONTECH and HANSEL
Model Number:	NU206E

Payment & Shipping Terms:

Minimum Order Quantity:	100 pieces
Price:	$2.68/pieces 100-999 pieces
Delivery Time:	If stock, in 7days or based on your order quantity

Get Best Price Contact Now

Detail Information
Product Description

Detail Information
Type:	Roller	Structure:	Cylindrical
Applicable Industries:	Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Retail, Construction Works , Energy & Mining, Other	Precision Rating:	P6, P0, P5, P4, P2
Seals Type:	Open	Number Of Row:	Single Row
Product Name:	Cylindrical Roller Beairngs	Feature:	Long Life
Application:	Automotive.tractor.construction Machinery.rolling Mill	Material:	Chrome Steel Gcr15
Cage:	Steel Cage.Brass Cage.Nylon Cage	Package:	Original Package
Service:	OEM Customized Services	Vibration:	V1 V2 V3 V4
CERTIFICATE:	ISO9001:2008	Lubricate:	Oil Grease

Product Description

product description:

_{Cylindrical roller bearings have high load-bearing capacity, high-speed performance, wear resistance and ease of installation, and are suitable for various mechanical equipment.}

_{Cylindrical roller bearings are mainly used in the automotive industry, aerospace industry, railway transportation, heavy machinery, power industry, etc.}

_{We always adhere to customer-centricity and provide a full range of pre-sales, sales and after-sales services. No matter what problem you encounter, we will be happy to answer and solve it for you.}

Cylindrical roller bearing rings are divided into the following shapes according to the presence or absence of ribs.

Specification

Boundary dimensions(mm)									Limiting speeds(rpm)	Mass(Kg)
d	D	B	rs min	r1s min	Grease	Oil	(Approx.)	Bearing Number
20	47	14	1	0.6	15,000	18,000	0. 122	NU204E
25	52	15	1	0.6	13,000	15,000	0. 151	NU205E
30	62	16	1	0.6	11,000	13,000	0.226	NU206E
35	72	17	1.1	0.6	9,500	11,000	0.327	NU207E
40	80	18	1.1	1.1	9,400	11,000	0.378	NU208
40	80	18	1.1	1.1	8,500	10,000	0.426	NU208E
45	85	19	1.1	1.1	8,400	9,900	0.432	NU209
45	85	19	1.1	1.1	7,600	9,000	0.495	NU209E
50	90	20	1.1	1.1	7,600	9,000	0.47	NU210
50	90	20	1.1	1.1	6,900	8, 100	0.54	NU210E
55	100	21	1.5	1.1	6,900	8,200	0.638	NU211
55	100	21	1.5	1.1	6,300	7,400	0.718	NU211E
60	110	22	1.5	1.5	6,400	7,600	0.818	NU212
60	110	22	1.5	1.5	5,800	6,800	0.923	NU212E
65	120	23	1.5	1.5	5,900	7,000	1.02	NU213
65	120	23	1.5	1.5	5,400	6,300	1.21	NU213E
70	125	24	1.5	1.5	5,500	6,500	1. 12	NU214
70	125	24	1.5	1.5	5,000	5,900	1.3	NU214E
75	130	25	1.5	1.5	5, 100	6,000	1.23	NU215
75	130	25	1.5	1.5	4,700	5,500	1.41	NU215E
80	140	26	2	2	4,800	5,700	1.5	NU216
80	140	26	2	2	4,400	5, 100	1.67	NU216E
