Own Brand MOTIONTECH and HANSEL Since 2008, we begin to do OEM service for customers from all over the world. In 2012, we have our own brand HANSEL and MOTIONTECH. Providing Excellent Services Relying on the bearing market, Ah-factory is committed to being the best supplier of bearings, doing the best OEM services for customers and offering the best quality and best price.
 |
Stable Performance UCP202 Pillow Block Bearing Low Voice and Oil Grease Lubrication
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | HANSEL |
| Model Number: | P202 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 pieces |
|---|---|
| Price: | $3.19/pieces 10-99 pieces |
| Delivery Time: | If stock, in 7days or based on your order quantity |
|
Detail Information |
|||
| Type: | Pillow Block, 2 Bolts Flange Bearing Unit | Applicable Industries: | Manufacturing Plant, Farms, Construction Works , Energy & Mining, Other |
|---|---|---|---|
| Precision Rating: | P0P6P5P4P2 | Product Name: | Pillow Bloock Bearing |
| Material: | Gray Iron + Bearing Steel | Feature: | Stable Performance:low Voice |
| Housing Material: | Cast Iron HT200/ Ductile Iron | Application: | Automotive.tractor.construction Machinery.rolling Mill |
| Model: | UC.UCP.UCF.UCT | Cage: | Steel Cage.copper Cage.nylon Cage |
| Lubrication: | Oil Grease | Stock: | Large Ex-stock |
Product Description
Product Description

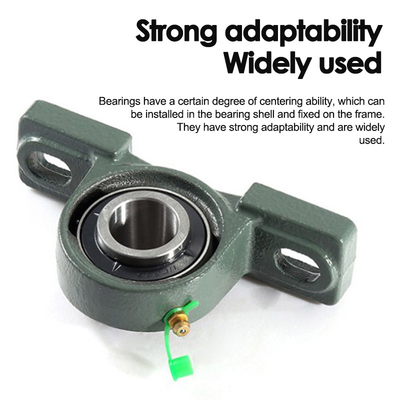

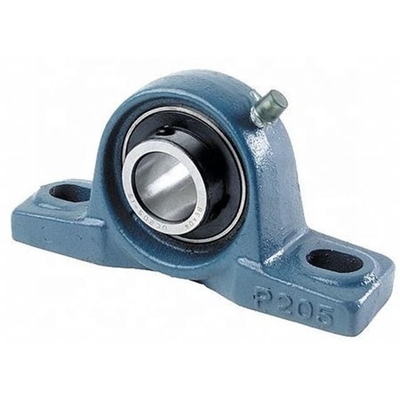

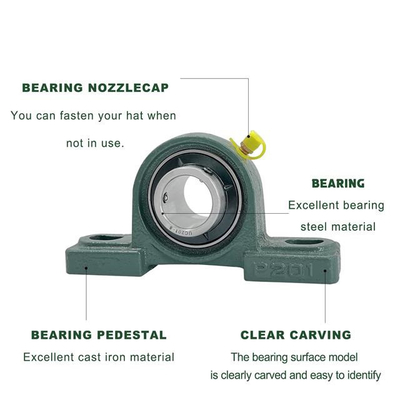

Pillow block bearing combines an external spherical bearing with a bearing housing. Most of the outer spherical bearings are made of spherical outer diameter, and are installed together with the bearing housing with a spherical inner hole, and the structure is diverse, and the versatility and interchangeability are good.
Specification
TYPE | Shaft -∅ in mm | Dimensions in mm | Weight (kg) | ||||||||
Typ | g | w | Bi | n | ds | ||||||
UCP201 | 12 | 15 | 62 | 31 | 12,7 | M10 | 0,63 | ||||
UCP202 | 15 | 15 | 62 | 31 | 12,7 | M10 | 0,63 | ||||
UCP203 | 17 | 15 | 62 | 31 | 12,7 | M10 | 0,63 | ||||
UCP204 | 20 | 15 | 65 | 31 | 12,7 | M10 | 0,65 | ||||
UCP205 | 25 | 16 | 70 | 34 | 14,3 | M10 | 0,79 | ||||
UCP206 | 30 | 18 | 83 | 38,1 | 15,9 | M14 | 1,3 | ||||
UCP207 | 35 | 19 | 94 | 42,9 | 17,5 | M14 | 1,6 | ||||
UCP208 | 40 | 19 | 100 | 49,2 | 19 | M14 | 2 | ||||
UCP209 | 45 | 20 | 108 | 49,2 | 19 | M14 | 2,2 | ||||
UCP210 | 50 | 22 | 114 | 51,6 | 19 | M16 | 2,8 | ||||
UCP211 | 55 | 22 | 126 | 55,6 | 22,2 | M16 | 3,4 | ||||
UCP212 | 60 | 25 | 138 | 65,1 | 25,4 | M16 | 4,8 | ||||
UCP213 | 65 | 27 | 150 | 65,1 | 25,4 | M20 | 5,7 | ||||
UCP214 | 70 | 27 | 156 | 74,6 | 30,2 | M20 | 7 | ||||
UCP215 | 75 | 28 | 163 | 77,8 | 33,3 | M20 | 7,6 | ||||
UCP216 | 80 | 30 | 175 | 82,6 | 33,3 | M20 | 9 | ||||
UCP217 | 85 | 32 | 187 | 85,7 | 34,1 | M20 | 11,5 | ||||
UCP218 | 90 | 34 | 200 | 96 | 39,7 | M22 | 14,3 | ||||
Related Products
Company Profile
Wide Product Range to Choose From
Ah-factory Co., Ltd. is located in Yandian, Linqing, which is the biggest bearing market in China. Ah-factory bearing's main products are deep groove ball bearings, spherical roller bearings, tapered roller bearings, cylindrical roller bearings, spherical plain bearings, pillow block bearings, needle roller bearings, and all kinds of bearing parts and seals.
Exhibition
Packing & Delivery
FAQ
Q1:IS you company factory or Trade Company?
We have our own factory, our type is factory +trade.
Q2: Could you accept OEM and customize?
Yes, we can customize it for you according to the sample or drawing.
Q3: What is the MOQ of your company?
Our MOQ is normally 10pcs, anyway lower MOQ is also acceptable with a little higher cost, as the more you purchase the cheaper cost you could get.
Q4: Could you tell me the material of your bearing?
We have chrome steel, stainless steel, and ceramic.
Q5: Could you offer door-to-door service?
Yes, by express(DHL, FedEx, TNT, EMS,4-10 days to your city.)
Q6: Could you tell me the delivery time of your doors?
If stock, in 7days or based on your order quantity.
