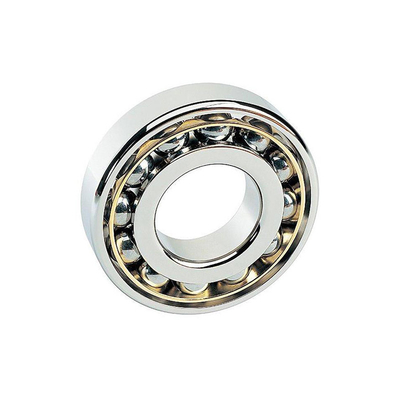

60*130*31mm Four Point Angular Contact Ball Bearing QJ-236-N2MA for Speed Applications
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | HANSEL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 pieces |
|---|---|
| Price: | $30.99/pieces 10-999 pieces |
| Delivery Time: | If stock, in 7days or based on your order quantity |
|
Detail Information |
|||
| Type: | BALL | Structure: | Angular Contact |
|---|---|---|---|
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Retail, Construction Works , Energy & Mining, Other | Precision Rating: | P0P6P5P4P2 |
| Seals Type: | OPEN | Number Of Row: | Other |
| Product Name: | Angualr Contact Ball Bearing | Application: | Automotive.tractor.construction Machinery.rolling Mill |
| Feature: | Stable Performance:low Voice | Package: | Paper Box + Carton + Wooden Pallet |
| Cage: | Steel Cage.copper Cage.nylon Cage | Lubricated: | Oil Grease |
| Certificate: | ISO9001:2008 | Stock: | Great Supplying Ability |
| DELIVERY: | 1~15days | Service: | OEM Customized Services |
Product Description
Product Description
Specification
Boundary dimensions(mm) | Limiting speeds(rpm) | Mass(Kg) | |||||||||||
d | D | B | rs min | r1s min | Grease | Oil | (Approx.) | Bearing Number | |||||
100 | 180 | 34 | 2.1 | 1.1 | 3,900 | 5,200 | 3.2 | 7220 | |||||
75 | 130 | 25 | 1.5 | 1 | 5,300 | 7, 100 | 1. 17 | 7215 | |||||
80 | 140 | 26 | 2 | 1 | 5,000 | 6,600 | 1.39 | 7216 | |||||
85 | 150 | 28 | 2 | 1 | 4,700 | 6,200 | 1.78 | 7217 | |||||
60 | 110 | 22 | 1.5 | 1 | 6,600 | 8,800 | 0.765 | 7212 | |||||
65 | 120 | 23 | 1.5 | 1 | 6, 100 | 8, 100 | 0.962 | 7213 | |||||
70 | 125 | 24 | 1.5 | 1 | 5,700 | 7,600 | 1.09 | 7214 | |||||
45 | 85 | 19 | 1.1 | 0.6 | 8,700 | 12,000 | 0.404 | 7209 | |||||
50 | 90 | 20 | 1.1 | 0.6 | 7,900 | 10,000 | 0.457 | 7210 | |||||
55 | 100 | 21 | 1.5 | 1 | 7, 100 | 9,500 | 0.6 | 7211 | |||||
30 | 62 | 16 | 1 | 0.6 | 12,000 | 16,000 | 0. 193 | 7206 | |||||
35 | 72 | 17 | 1.1 | 0.6 | 11,000 | 14,000 | 0.281 | 7207 | |||||
40 | 80 | 18 | 1.1 | 0.6 | 9,600 | 13,000 | 0.355 | 7208 | |||||
17 | 40 | 12 | 0.6 | 0.3 | 19,000 | 26,000 | 0.064 | 7203 | |||||
20 | 47 | 14 | 1 | 0.6 | 17,000 | 23,000 | 0.1 | 7204 | |||||
25 | 52 | 15 | 1 | 0.6 | 14,000 | 19,000 | 0. 125 | 7205 | |||||
Related Products
Company Profile
Shandong Ah-factory Import & Export Co.,Ltd
Exhibition
Packing & Delivery
FAQ
Q1:IS you company factory or Trade Company?
We have our own factory, our type is factory +trade.
Q2: Could you accept OEM and customize?
Yes, we can customize it for you according to the sample or drawing.
Q3: What is the MOQ of your company?
Our MOQ is normally 10pcs, anyway lower MOQ is also acceptable with a little higher cost, as the more you purchase the cheaper cost you could get.
Q4: Could you tell me the material of your bearing?
We have chrome steel, stainless steel, and ceramic.
Q5: Could you offer door-to-door service?
Yes, by express(DHL, FedEx, TNT, EMS,4-10 days to your city.)
Q6: Could you tell me the delivery time of your doors?
If stock, in 7days or based on your order quantity.
