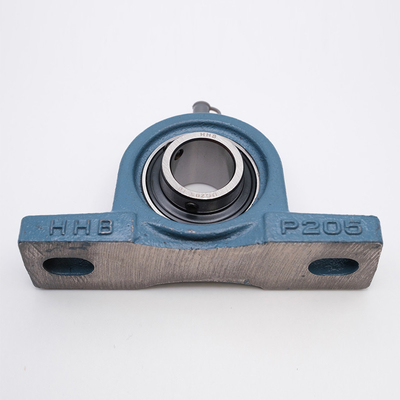

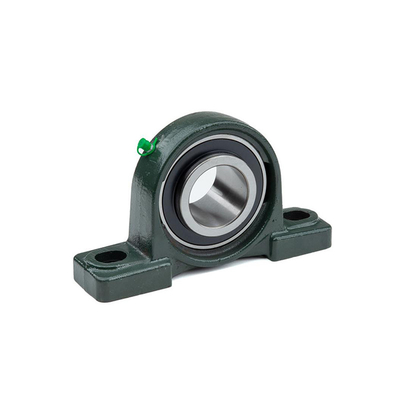

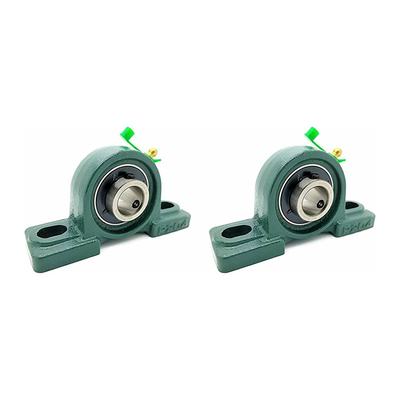

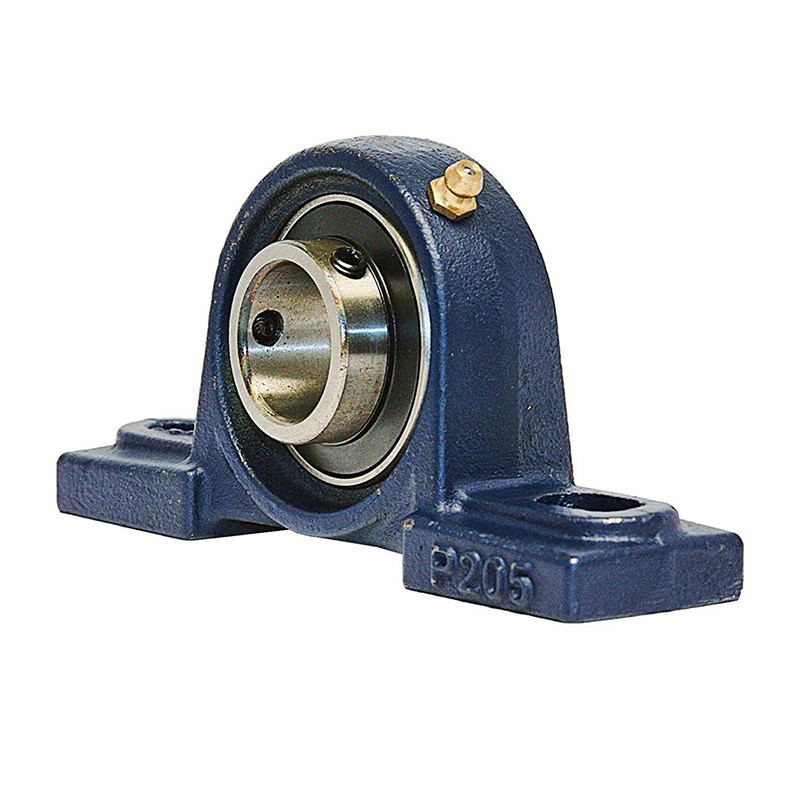

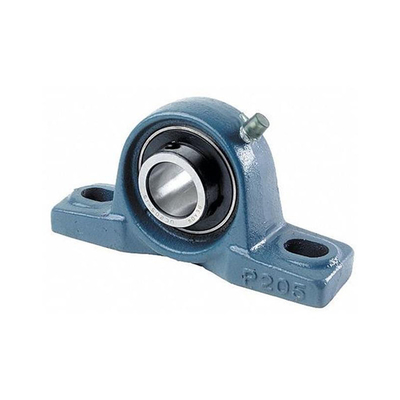

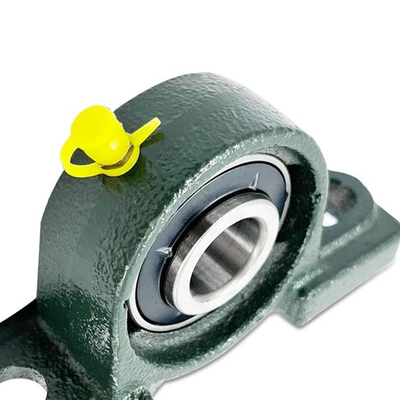

Seated Outer Spherical Bearings UCP Imperial 2" Metric 50.8mm Precision Rating P0 P4 P5 P6
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | HANSEL |
| Model Number: | UCP Imperial 2"Metric 50.8mm |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 pieces |
|---|---|
| Price: | $7.39/pieces 10-99 pieces |
| Delivery Time: | If stock, in 7days or based on your order quantity |
|
Detail Information |
|||
| Type: | Pillow Block | Applicable Industries: | Hotels, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Food Shop, Printing Shops, Energy & Mining |
|---|---|---|---|
| Precision Rating: | P5, P0 P4 P5 P6 | Material: | Chrome Steel GCR15 |
| Housing Material: | Stainless Steel AISI304 | Feature: | Stable Performance:low Voice |
| Application: | Automotive.tractor.construction Machinery.rolling Mill | Bearing Material: | Chrome Steel/GCr15/Bearing Steel |
| Quality: | 100% Inspection | Service: | OEM Service.Design Service |
| Lubricate: | Oil Grease | MOQ: | 1 Pcs |
Product Description
Product Description
Pillow block bearing combines an external spherical bearing with a bearing housing. Most of the outer spherical bearings are made of spherical outer diameter, and are installed together with the bearing housing with a spherical inner hole, and the structure is diverse, and the versatility and interchangeability are good.
Specification
TYPE | Shaft -∅ in mm | Dimensions in mm | Weight (kg) | ||||||||
Typ | g | w | Bi | n | ds | ||||||
UCP201 | 12 | 15 | 62 | 31 | 12,7 | M10 | 0,63 | ||||
UCP202 | 15 | 15 | 62 | 31 | 12,7 | M10 | 0,63 | ||||
UCP203 | 17 | 15 | 62 | 31 | 12,7 | M10 | 0,63 | ||||
UCP204 | 20 | 15 | 65 | 31 | 12,7 | M10 | 0,65 | ||||
UCP205 | 25 | 16 | 70 | 34 | 14,3 | M10 | 0,79 | ||||
UCP206 | 30 | 18 | 83 | 38,1 | 15,9 | M14 | 1,3 | ||||
UCP207 | 35 | 19 | 94 | 42,9 | 17,5 | M14 | 1,6 | ||||
UCP208 | 40 | 19 | 100 | 49,2 | 19 | M14 | 2 | ||||
UCP209 | 45 | 20 | 108 | 49,2 | 19 | M14 | 2,2 | ||||
UCP210 | 50 | 22 | 114 | 51,6 | 19 | M16 | 2,8 | ||||
UCP211 | 55 | 22 | 126 | 55,6 | 22,2 | M16 | 3,4 | ||||
UCP212 | 60 | 25 | 138 | 65,1 | 25,4 | M16 | 4,8 | ||||
UCP213 | 65 | 27 | 150 | 65,1 | 25,4 | M20 | 5,7 | ||||
UCP214 | 70 | 27 | 156 | 74,6 | 30,2 | M20 | 7 | ||||
UCP215 | 75 | 28 | 163 | 77,8 | 33,3 | M20 | 7,6 | ||||
UCP216 | 80 | 30 | 175 | 82,6 | 33,3 | M20 | 9 | ||||
UCP217 | 85 | 32 | 187 | 85,7 | 34,1 | M20 | 11,5 | ||||
UCP218 | 90 | 34 | 200 | 96 | 39,7 | M22 | 14,3 | ||||
Related Products
Company Profile
Wide Product Range to Choose From
Ah-factory Co., Ltd. is located in Yandian, Linqing, which is the biggest bearing market in China. Ah-factory bearing's main products are deep groove ball bearings, spherical roller bearings, tapered roller bearings, cylindrical roller bearings, spherical plain bearings, pillow block bearings, needle roller bearings, and all kinds of bearing parts and seals.
Exhibition
Packing & Delivery
FAQ
Q1:IS you company factory or Trade Company?
We have our own factory, our type is factory +trade.
Q2: Could you accept OEM and customize?
Yes, we can customize it for you according to the sample or drawing.
Q3: What is the MOQ of your company?
Our MOQ is normally 10pcs, anyway lower MOQ is also acceptable with a little higher cost, as the more you purchase the cheaper cost you could get.
Q4: Could you tell me the material of your bearing?
We have chrome steel, stainless steel, and ceramic.
Q5: Could you offer door-to-door service?
Yes, by express(DHL, FedEx, TNT, EMS,4-10 days to your city.)
Q6: Could you tell me the delivery time of your doors?
If stock, in 7days or based on your order quantity.
