The contact angle design of our angular contact ball bearings enables them to support radial and axial loads. This unique design increases load capacity and improves performance, making it suitable for a wide range of applications including high-speed machinery, automotive components and industrial equipment. With a variety of sizes and configurations, we can provide the perfect solution for your specific needs.
 |

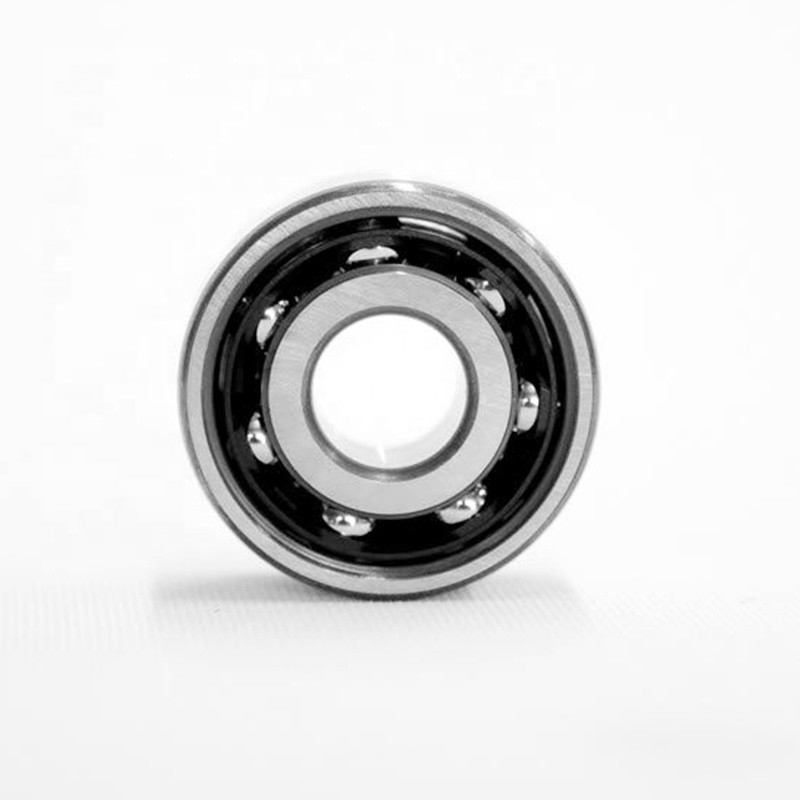

OEM Service Provided High Speed 7301AC Angular Contact Bearing for Construction Machinery
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | HANSEL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 pieces |
|---|---|
| Price: | $0.58/pieces 100-999 pieces |
| Delivery Time: | If stock, in 7days or based on your order quantity |
|
Detail Information |
|||
| Type: | BALL, Angular Contact Ball Bearing | Structure: | Angular Contact |
|---|---|---|---|
| Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C | Precision Rating: | P5/P4/P2 |
| Seals Type: | Open | Number Of Row: | Single Row |
| Application: | Automotive.tractor.construction Machinery.rolling Mill | Feature: | Stable Performance:low Voice |
| Material: | Chrome Steel GCR15 | Quality: | High Qulity |
| Precision: | P2/P4/P5/P6 | Service: | OEM Service.Design Service |
| Stock: | Rich | OEM Service: | Provided |
Product Description
Product Description
product description:
Specification
Boundary dimensions(mm) | Limiting speeds(rpm) | Mass(Kg) | |||||||||||
d | D | B | rs min | r1s min | Grease | Oil | (Approx.) | Bearing Number | |||||
100 | 180 | 34 | 2.1 | 1.1 | 3,900 | 5,200 | 3.2 | 7220 | |||||
75 | 130 | 25 | 1.5 | 1 | 5,300 | 7, 100 | 1. 17 | 7215 | |||||
80 | 140 | 26 | 2 | 1 | 5,000 | 6,600 | 1.39 | 7216 | |||||
85 | 150 | 28 | 2 | 1 | 4,700 | 6,200 | 1.78 | 7217 | |||||
60 | 110 | 22 | 1.5 | 1 | 6,600 | 8,800 | 0.765 | 7212 | |||||
65 | 120 | 23 | 1.5 | 1 | 6, 100 | 8, 100 | 0.962 | 7213 | |||||
70 | 125 | 24 | 1.5 | 1 | 5,700 | 7,600 | 1.09 | 7214 | |||||
45 | 85 | 19 | 1.1 | 0.6 | 8,700 | 12,000 | 0.404 | 7209 | |||||
50 | 90 | 20 | 1.1 | 0.6 | 7,900 | 10,000 | 0.457 | 7210 | |||||
55 | 100 | 21 | 1.5 | 1 | 7, 100 | 9,500 | 0.6 | 7211 | |||||
30 | 62 | 16 | 1 | 0.6 | 12,000 | 16,000 | 0. 193 | 7206 | |||||
35 | 72 | 17 | 1.1 | 0.6 | 11,000 | 14,000 | 0.281 | 7207 | |||||
40 | 80 | 18 | 1.1 | 0.6 | 9,600 | 13,000 | 0.355 | 7208 | |||||
17 | 40 | 12 | 0.6 | 0.3 | 19,000 | 26,000 | 0.064 | 7203 | |||||
20 | 47 | 14 | 1 | 0.6 | 17,000 | 23,000 | 0.1 | 7204 | |||||
25 | 52 | 15 | 1 | 0.6 | 14,000 | 19,000 | 0. 125 | 7205 | |||||
Related Products
Company Profile
Shandong Ah-factory Import & Export Co.,Ltd
Shandong Ah-factory mport & Export Co.,Ltd is located in Jinan,Shandong province. Our predecessor is committed to the export of bearings, sleeves and seals, which has more than 16 years’ experience. We have cooperated with more than 1000 bearing factories and own shares in a number of factories.
Exhibition
Packing & Delivery
FAQ
Q1:IS you company factory or Trade Company?
We have our own factory, our type is factory +trade.
Q2: Could you accept OEM and customize?
Yes, we can customize it for you according to the sample or drawing.
Q3: What is the MOQ of your company?
Our MOQ is normally 10pcs, anyway lower MOQ is also acceptable with a little higher cost, as the more you purchase the cheaper cost you could get.
Q4: Could you tell me the material of your bearing?
We have chrome steel, stainless steel, and ceramic.
Q5: Could you offer door-to-door service?
Yes, by express(DHL, FedEx, TNT, EMS,4-10 days to your city.)
Q6: Could you tell me the delivery time of your doors?
If stock, in 7days or based on your order quantity.
