The contact angle design of our angular contact ball bearings enables them to support radial and axial loads. This unique design increases load capacity and improves performance, making it suitable for a wide range of applications including high-speed machinery, automotive components and industrial equipment. With a variety of sizes and configurations, we can provide the perfect solution for your specific needs.
 |

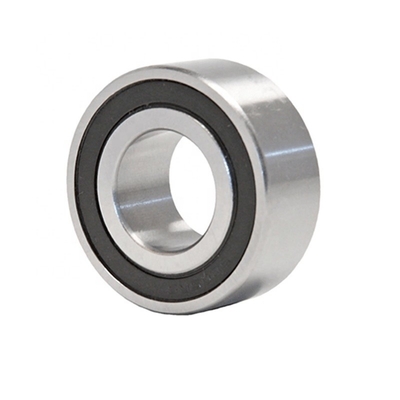

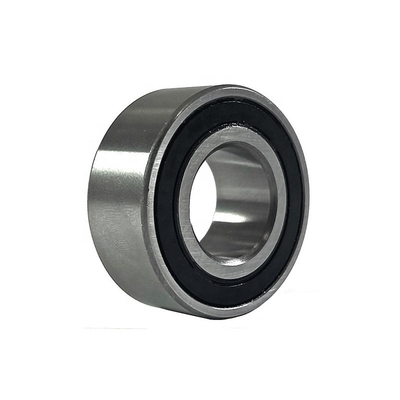

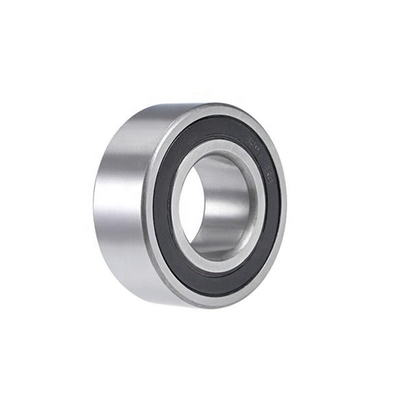

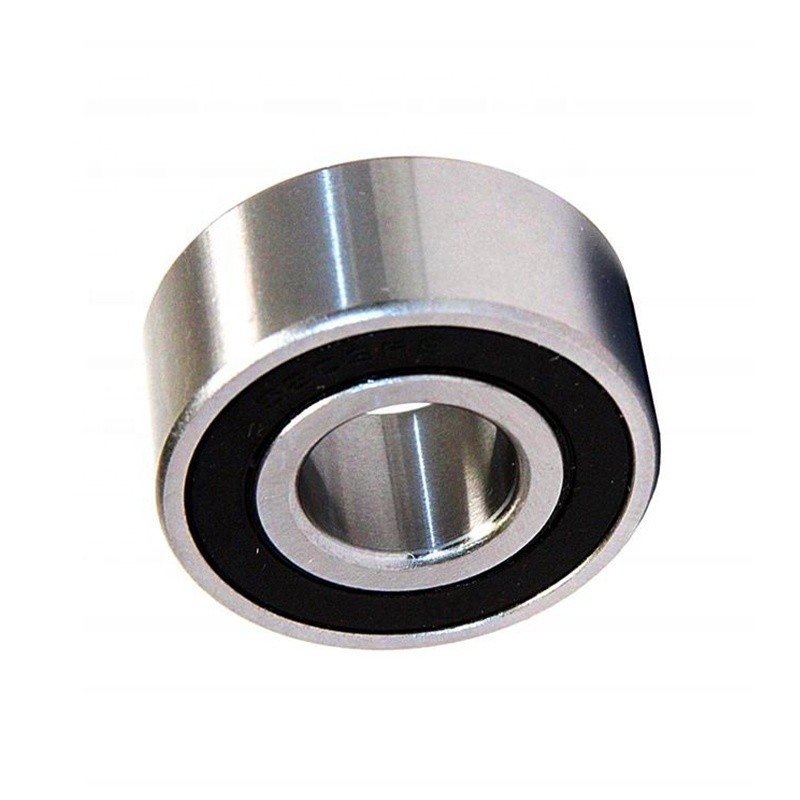

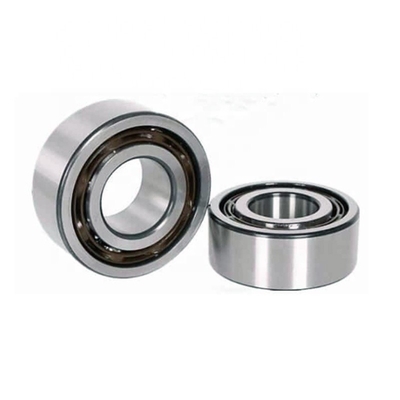

3200-2RS High Speed Angular Contact Ball Bearing Long Life Vibration Z1V1 Z2V2 Z3V3
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | HANSEL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 pieces |
|---|---|
| Price: | $2.29/pieces 10-999 pieces |
| Delivery Time: | If stock, in 7days or based on your order quantity |
|
Detail Information |
|||
| Type: | BALL | Structure: | Angular Contact |
|---|---|---|---|
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Construction Works , Energy & Mining | Precision Rating: | P4, P5, P6 |
| Seals Type: | 2RS | Number Of Row: | Double Row |
| Model No: | 3200 3201 | Service: | OEM Service.Design Service |
| Feature: | Long Life High Speed | Quality: | 100% Tested |
| Vibration: | Z1V1 Z2V2 Z3V3 | Stock: | Rich |
| Application: | Automotive.tractor.construction Machinery.rolling Mill | Material: | Chrome Steel GCR15 |
Product Description
Product Description
product description:
Specification
Boundary dimensions(mm) | Limiting speeds(rpm) | Mass(Kg) | |||||||||||
d | D | B | rs min | r1s min | Grease | Oil | (Approx.) | Bearing Number | |||||
100 | 180 | 34 | 2.1 | 1.1 | 3,900 | 5,200 | 3.2 | 7220 | |||||
75 | 130 | 25 | 1.5 | 1 | 5,300 | 7, 100 | 1. 17 | 7215 | |||||
80 | 140 | 26 | 2 | 1 | 5,000 | 6,600 | 1.39 | 7216 | |||||
85 | 150 | 28 | 2 | 1 | 4,700 | 6,200 | 1.78 | 7217 | |||||
60 | 110 | 22 | 1.5 | 1 | 6,600 | 8,800 | 0.765 | 7212 | |||||
65 | 120 | 23 | 1.5 | 1 | 6, 100 | 8, 100 | 0.962 | 7213 | |||||
70 | 125 | 24 | 1.5 | 1 | 5,700 | 7,600 | 1.09 | 7214 | |||||
45 | 85 | 19 | 1.1 | 0.6 | 8,700 | 12,000 | 0.404 | 7209 | |||||
50 | 90 | 20 | 1.1 | 0.6 | 7,900 | 10,000 | 0.457 | 7210 | |||||
55 | 100 | 21 | 1.5 | 1 | 7, 100 | 9,500 | 0.6 | 7211 | |||||
30 | 62 | 16 | 1 | 0.6 | 12,000 | 16,000 | 0. 193 | 7206 | |||||
35 | 72 | 17 | 1.1 | 0.6 | 11,000 | 14,000 | 0.281 | 7207 | |||||
40 | 80 | 18 | 1.1 | 0.6 | 9,600 | 13,000 | 0.355 | 7208 | |||||
17 | 40 | 12 | 0.6 | 0.3 | 19,000 | 26,000 | 0.064 | 7203 | |||||
20 | 47 | 14 | 1 | 0.6 | 17,000 | 23,000 | 0.1 | 7204 | |||||
25 | 52 | 15 | 1 | 0.6 | 14,000 | 19,000 | 0. 125 | 7205 | |||||
Related Products
Company Profile
Shandong Ah-factory Import & Export Co.,Ltd
Shandong Ah-factory mport & Export Co.,Ltd is located in Jinan,Shandong province. Our predecessor is committed to the export of bearings, sleeves and seals, which has more than 16 years’ experience. We have cooperated with more than 1000 bearing factories and own shares in a number of factories.
Exhibition
Packing & Delivery
FAQ
Q1:IS you company factory or Trade Company?
We have our own factory, our type is factory +trade.
Q2: Could you accept OEM and customize?
Yes, we can customize it for you according to the sample or drawing.
Q3: What is the MOQ of your company?
Our MOQ is normally 10pcs, anyway lower MOQ is also acceptable with a little higher cost, as the more you purchase the cheaper cost you could get.
Q4: Could you tell me the material of your bearing?
We have chrome steel, stainless steel, and ceramic.
Q5: Could you offer door-to-door service?
Yes, by express(DHL, FedEx, TNT, EMS,4-10 days to your city.)
Q6: Could you tell me the delivery time of your doors?
If stock, in 7days or based on your order quantity.
