The contact angle design of our angular contact ball bearings enables them to support radial and axial loads. This unique design increases load capacity and improves performance, making it suitable for a wide range of applications including high-speed machinery, automotive components and industrial equipment. With a variety of sizes and configurations, we can provide the perfect solution for your specific needs.
 |

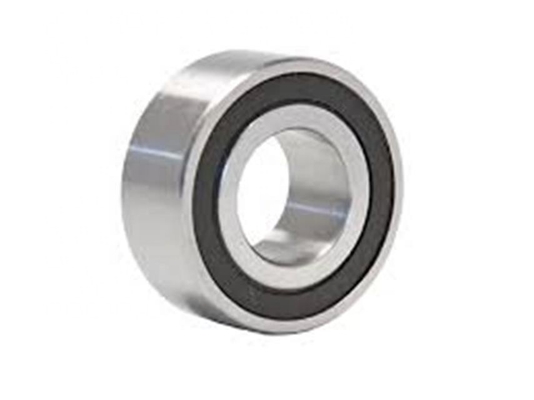

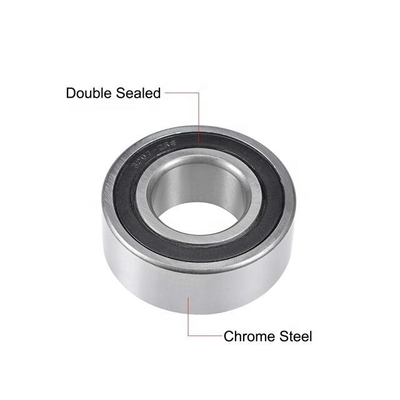

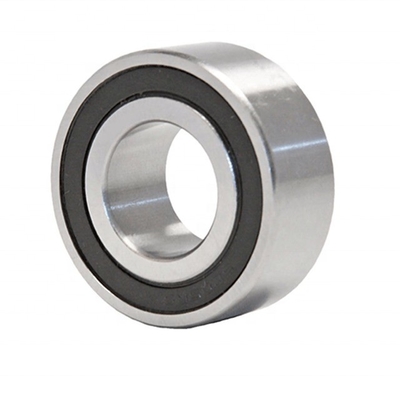

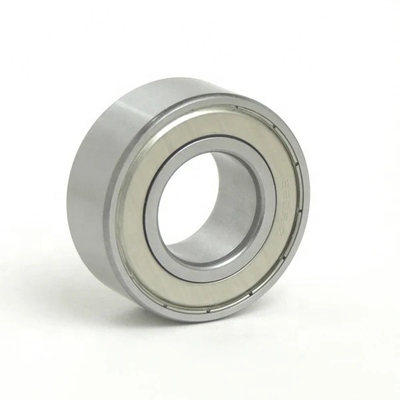

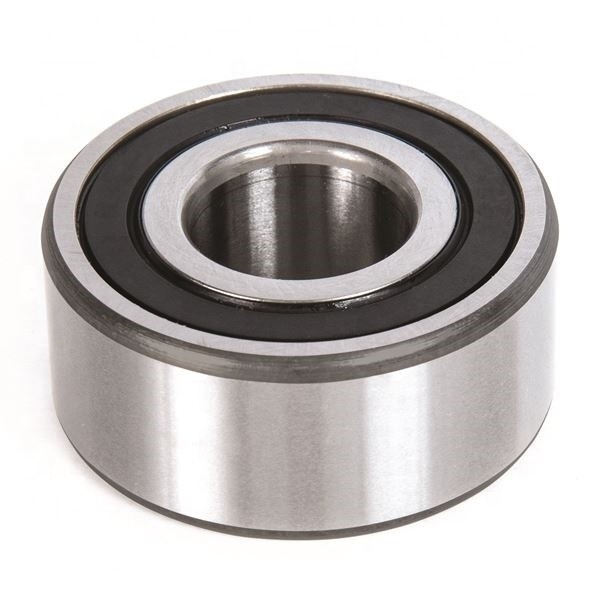

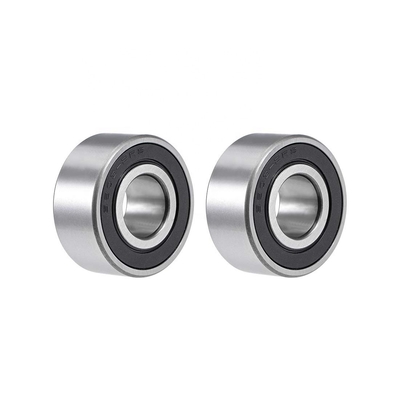

BALL 3206A-2RS Double Row Angular Contact Ball Bearing for Machinery Repair Shops
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | MOTIONTECH and HANSEL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 pieces |
|---|---|
| Price: | $2.20/pieces 10-999 pieces |
| Packaging Details: | 1)Neutral package & wooden package<br>2)Carton package+pallet<br>3)Wooden package+pallet<br>4)According to your request |
| Delivery Time: | If stock, in 7days or based on your order quantity |
| Supply Ability: | 10000 Piece/Pieces per Month |
|
Detail Information |
|||
| Type: | BALL | Structure: | Angular Contact |
|---|---|---|---|
| Applicable Industries: | Manufacturing Plant, Machinery Repair Shops, Retail, Construction Works , Energy & Mining, Other | Precision Rating: | P5/P4/P2/P0 |
| Seals Type: | Sealed/open | Number Of Row: | Double Row |
| Product Name: | Angualr Contact Ball Bearing | Application: | Automotive.tractor.construction Machinery.rolling Mill |
| Material: | Chrome Steel GCR15 | OEM Service: | Custom Bearing's Size Logo Packing |
Product Description
Product Description
product description:
Specification
New Designations | 3206 | |
Old Code | 3056206 | |
Main demensions | 30 × 62 × 23.8 | Bore Dia × Outside Dia × Width Dia (mm) |
M | 0.29 kg | Weight |
HS Code | 8482103000 | Bearing customs code |
ID | 30 mm | Inside diameter(I.D.) |
OD | 62 mm | Outside diameter(O.D.) |
T(B) | 23.8 mm | Thickness(W.D.) |
C | 28.1 kN | Radial dynamic load rating |
C0 | 20 kN | Radial static load rating |
Grease rpm | 6500 r/min | Reference speed |
Oil rpm | 8700 r/min | Limiting speed |
Category | Double row angular contact ball bearings |
Related Products
Company Profile
Shandong Ah-factory Import & Export Co.,Ltd
Shandong Ah-factory mport & Export Co.,Ltd is located in Jinan,Shandong province. Our predecessor is committed to the export of bearings, sleeves and seals, which has more than 16 years’ experience. We have cooperated with more than 1000 bearing factories and own shares in a number of factories.
Exhibition
Packing & Delivery
FAQ
Q1:IS you company factory or Trade Company?
We have our own factory, our type is factory +trade.
Q2: Could you accept OEM and customize?
Yes, we can customize it for you according to the sample or drawing.
Q3: What is the MOQ of your company?
Our MOQ is normally 10pcs, anyway lower MOQ is also acceptable with a little higher cost, as the more you purchase the cheaper cost you could get.
Q4: Could you tell me the material of your bearing?
We have chrome steel, stainless steel, and ceramic.
Q5: Could you offer door-to-door service?
Yes, by express(DHL, FedEx, TNT, EMS,4-10 days to your city.)
Q6: Could you tell me the delivery time of your doors?
If stock, in 7days or based on your order quantity.
