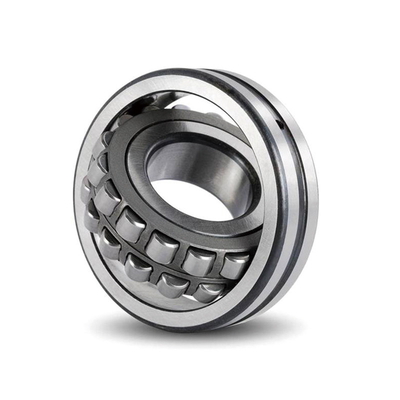

Oil Coated Seals Type 22218 Mbc3/W33 23244cck/W33 Spherical Roller Bearing for Roller
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | MOTIONTECH and HANSEL |
| Model Number: | 22218 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 pieces |
|---|---|
| Price: | $5.68/pieces 10-999 pieces |
| Packaging Details: | 1.Kraft paper+Cartons+Wooden case pallets<br>2.Plastice tube+Cartons+Wooden case pallets;<br>3.Single box+Outer carton+Wooden case pallets;<br>4.According to your requirements. |
| Delivery Time: | If stock, in 7days or based on your order quantity |
| Supply Ability: | 10000 Piece/Pieces per Month |
|
Detail Information |
|||
| Type: | Roller | Structure: | Spherical |
|---|---|---|---|
| Applicable Industries: | Manufacturing Plant, Machinery Repair Shops, Construction Works , Energy & Mining, Other | Precision Rating: | High Precision |
| Seals Type: | Oil Coated | Number Of Row: | Double Row |
| Product Name: | Spherical Roller Bearing | Material: | Chrome Steel GCR15 |
| Feature: | Long Life High Speed | Service: | OEM Service.Design Service |
| Application: | Mining. Metallurgy. Agriculture. Chemical | Package: | Original Packing |
| Cage: | Steel Cage.copper Cage.nylon Cage | Keywords: | High Stability |
Product Description
Product Description
Specification
Boundary dimensions(mm) | Limiting speeds(rpm) | Mass(Kg) | Bearing Number | ||||||||
d | D | B | rs min | Grease | Oil | (Approx.) | |||||
130 | 210 | 64 | 2 | 1,300 | 2,000 | 8.2 | 23126K | ||||
130 | 210 | 64 | 2 | 1,300 | 2,000 | 8.2 | 23126KW33C3 | ||||
130 | 210 | 64 | 2 | 1,300 | 2,000 | 8.47 | 23126W33C3 | ||||
140 | 225 | 68 | 2.1 | 1,200 | 1,800 | 10.2 | 23128 | ||||
140 | 225 | 68 | 2.1 | 1,200 | 1,800 | 9.86 | 23128K | ||||
140 | 225 | 68 | 2.1 | 1,200 | 1,800 | 9.86 | 23128KW33C3 | ||||
140 | 225 | 68 | 2.1 | 1,200 | 1,800 | 10.2 | 23128W33C3 | ||||
150 | 250 | 80 | 2.1 | 1, 100 | 1,700 | 15.6 | 23130 | ||||
150 | 250 | 80 | 2.1 | 1, 100 | 1,700 | 15. 1 | 23130K | ||||
150 | 250 | 80 | 2.1 | 1, 100 | 1,700 | 15. 1 | 23130KW33C3 | ||||
150 | 250 | 80 | 2.1 | 1, 100 | 1,700 | 15.6 | 23130W33C3 | ||||
160 | 270 | 86 | 2.1 | 1,000 | 1,600 | 19.8 | 23132 | ||||
160 | 270 | 86 | 2.1 | 1,000 | 1,600 | 19.2 | 23132K | ||||
160 | 270 | 86 | 2.1 | 1,000 | 1,600 | 19.2 | 23132KW33C3 | ||||
160 | 270 | 86 | 2.1 | 1,000 | 1,600 | 19.8 | 23132W33C3 | ||||
170 | 280 | 88 | 2.1 | 960 | 1,500 | 21.5 | 23134 | ||||
170 | 280 | 88 | 2.1 | 960 | 1,500 | 20.8 | 23134K | ||||
170 | 280 | 88 | 2.1 | 960 | 1,500 | 20.8 | 23134KW33C3 | ||||
170 | 280 | 88 | 2.1 | 960 | 1,500 | 21.5 | 23134W33C3 | ||||
Spherical roller bearings are principally provided with two rows of symmetrical spherical rollers and a common sphere raceway in out ring, the two inner ring raceways are included at an angle to the bearing axial. The bearings have good self-aligning ability and can operate when the shaft deflection under load or the shaft deflection under load or the shaft misaligningment in mounting,and their permissible aligning angle is 1 to 2.5 degree. This type of bearings has heavy load carrying capacity and anti-impact ability, in addition to radial loads, they also can carry axial loads in two directions. In general, this type of bearings permit a low limiting speed.
