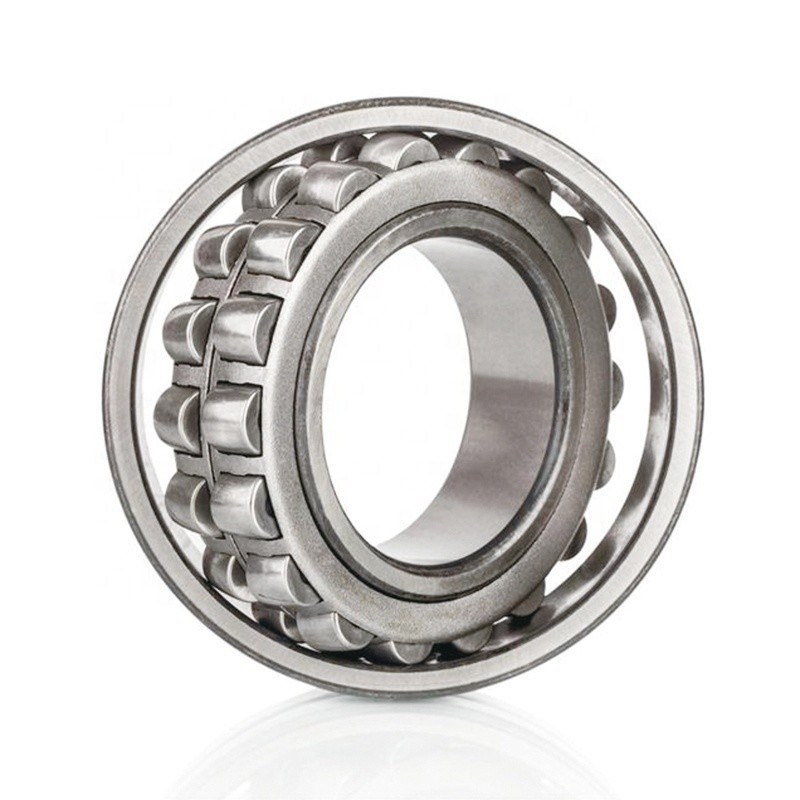

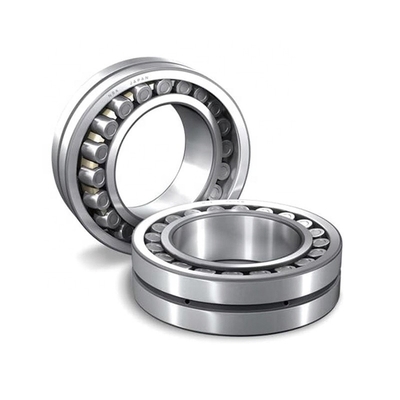

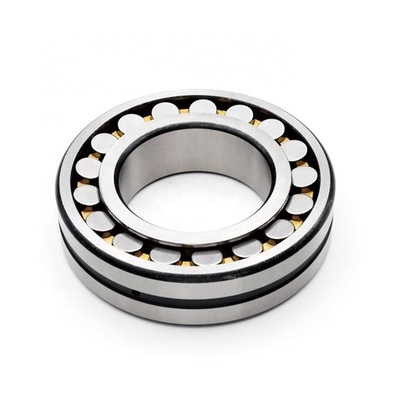

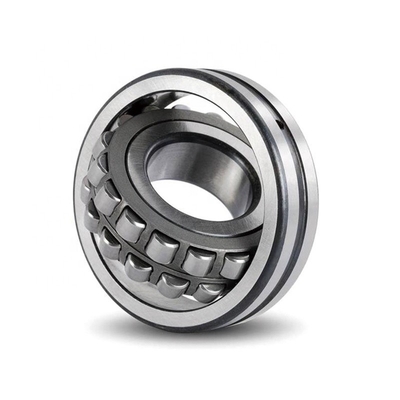

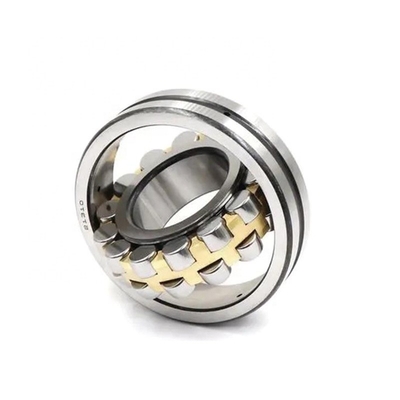

High Precision Spherical Structure 22205 22208 22210 22214 22328 22332 E K C3 W33 Roller Bearing for Long Life
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | HANSEL SKF FAG NSK |
| Model Number: | 22205 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 pieces |
|---|---|
| Price: | $2.50/pieces 10-99 pieces |
| Delivery Time: | If stock, in 7days or based on your order quantity |
|
Detail Information |
|||
| Type: | Roller | Structure: | Spherical |
|---|---|---|---|
| Applicable Industries: | Manufacturing Plant, Machinery Repair Shops, Construction Works , Energy & Mining, Advertising Company, Other | Precision Rating: | High Precision |
| Seals Type: | Oil Coated | Number Of Row: | Double Row |
| Product Name: | Spherical Roller Bearing 22205 | Material: | Chrome Steel GCR15 |
| Feature: | Long Life High Speed | Service: | OEM Service.Design Service |
Product Description
Product Description
Specification
Boundary dimensions(mm) | Limiting speeds(rpm) | Mass(Kg) | Bearing Number | ||||||||
d | D | B | rs min | Grease | Oil | (Approx.) | |||||
30 | 62 | 20 | 1 | 5,700 | 8,800 | 0.287 | 22206 | ||||
30 | 62 | 20 | 1 | 5,700 | 8,800 | 0.282 | 22206K | ||||
30 | 62 | 20 | 1 | 5,700 | 8,800 | 0.282 | 22206KW33C3 | ||||
30 | 62 | 20 | 1 | 5,700 | 8,800 | 0.287 | 22206W33C3 | ||||
35 | 72 | 23 | 1.1 | 4,900 | 7,500 | 0.446 | 22207 | ||||
35 | 72 | 23 | 1.1 | 4,900 | 7,500 | 0.437 | 22207K | ||||
35 | 72 | 23 | 1.1 | 4,900 | 7,500 | 0.437 | 22207KW33C3 | ||||
35 | 72 | 23 | 1.1 | 4,900 | 7,500 | 0.446 | 22207W33C3 | ||||
40 | 80 | 23 | 1.1 | 4,300 | 6,600 | 0.526 | 22208 | ||||
40 | 80 | 23 | 1.1 | 4,300 | 6,600 | 0.515 | 22208K | ||||
40 | 80 | 23 | 1.1 | 4,300 | 6,600 | 0.515 | 22208KW33C3 | ||||
40 | 80 | 23 | 1.1 | 4,300 | 6,600 | 0.526 | 22208W33C3 | ||||
45 | 85 | 23 | 1.1 | 3,800 | 5,900 | 0.584 | 22209 | ||||
45 | 85 | 23 | 1.1 | 3,800 | 5,900 | 0.572 | 22209K | ||||
45 | 85 | 23 | 1.1 | 3,800 | 5,900 | 0.572 | 22209KW33C3 | ||||
45 | 85 | 23 | 1.1 | 3,800 | 5,900 | 0.584 | 22209W33C3 | ||||
50 | 90 | 23 | 1.1 | 3,500 | 5,300 | 0.63 | 22210 | ||||
50 | 90 | 23 | 1.1 | 3,500 | 5,300 | 0.616 | 22210K | ||||
50 | 90 | 23 | 1.1 | 3,500 | 5,300 | 0.616 | 22210KW33C3 | ||||
50 | 90 | 23 | 1.1 | 3,500 | 5,300 | 0.63 | 22210W33C3 | ||||
Spherical roller bearings are principally provided with two rows of symmetrical spherical rollers and a common sphere raceway in
out ring, the two inner ring raceways are included at an angle to the bearing axial. The bearings have good self-aligning ability
and can operate when the shaft deflection under load or the shaft deflection under load or the shaft misaligningment in mounting,
and their permissible aligning angle is 1 to 2.5 degree. This type of bearings has heavy load carrying capacity and anti-impact
ability, in addition to radial loads, they also can carry axial loads in two directions. In general, this type of bearings permit
a low limiting speed.
out ring, the two inner ring raceways are included at an angle to the bearing axial. The bearings have good self-aligning ability
and can operate when the shaft deflection under load or the shaft deflection under load or the shaft misaligningment in mounting,
and their permissible aligning angle is 1 to 2.5 degree. This type of bearings has heavy load carrying capacity and anti-impact
ability, in addition to radial loads, they also can carry axial loads in two directions. In general, this type of bearings permit
a low limiting speed.
